VGA32 V1.4 PS/2 Controller – Graphics, Game Engine & Terminal

VGA32 V1.4 Controller – PS/2 Mouse & Keyboard | Graphics Library | Game Engine | ANSI/VT Terminal

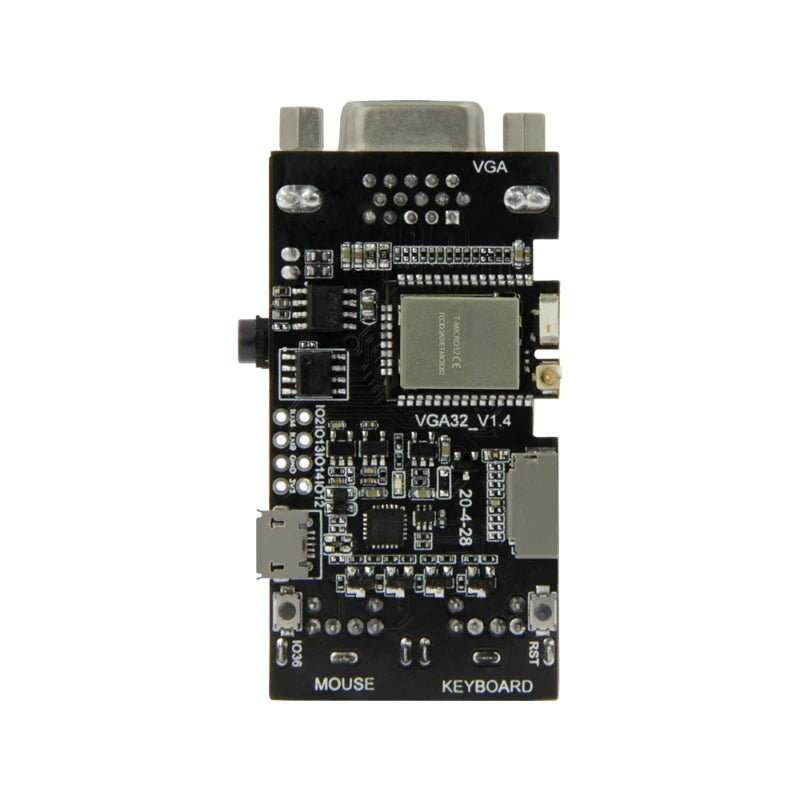

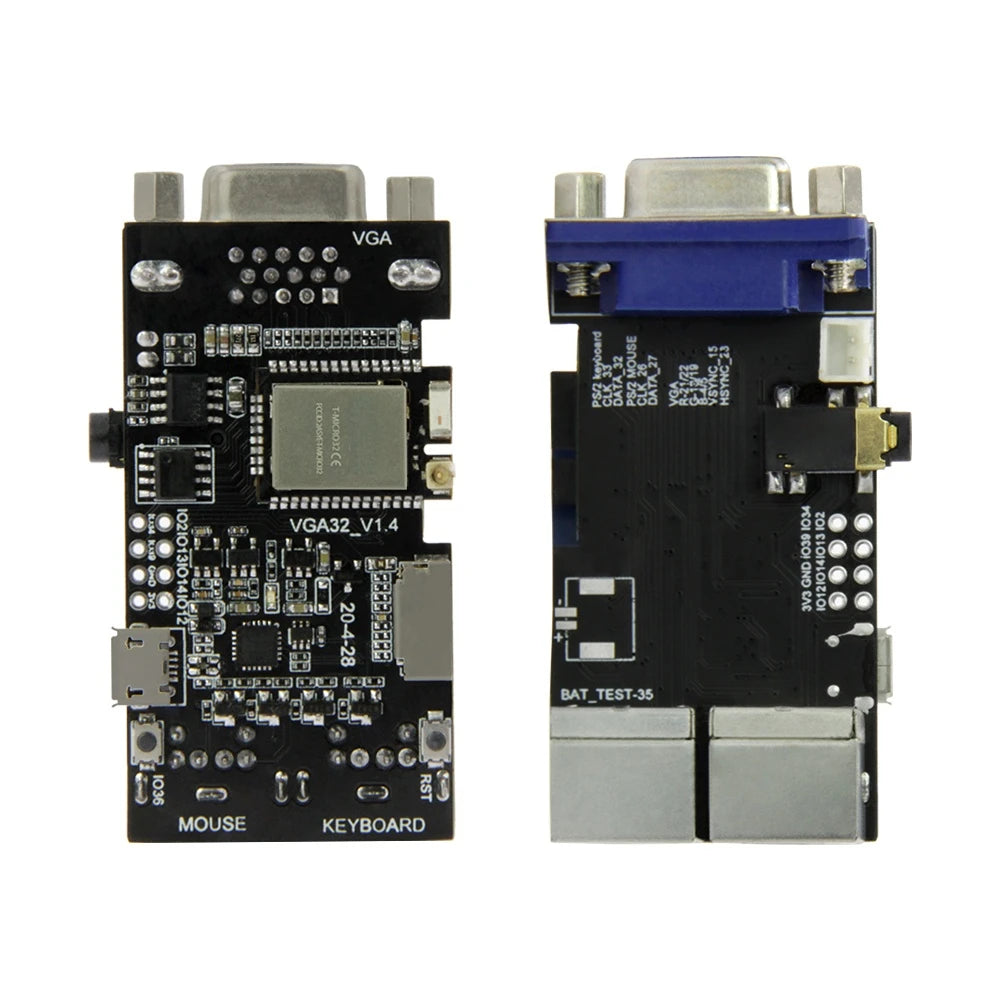

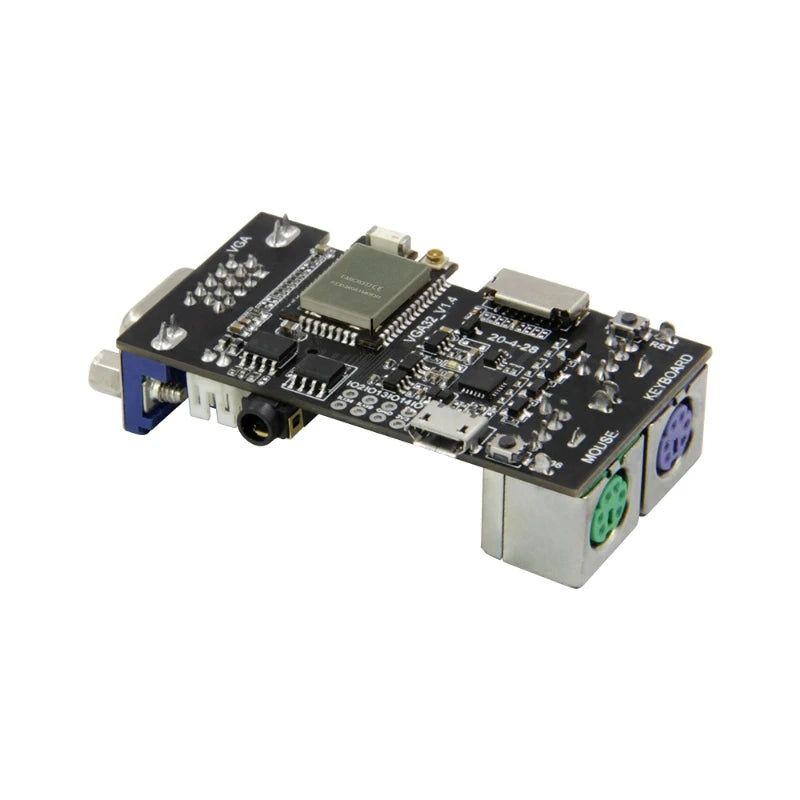

Take your microcontroller projects to the next level with the VGA32 V1.4 Controller Module (CP2104). This versatile development board integrates a PS/2 mouse and keyboard controller, a full VGA graphics output, a built-in graphics library and game engine, and an ANSI/VT terminal emulator — all in one compact module designed for ESP32-based (MCU32) platforms.

Whether you're building a retro-style gaming console, a custom terminal interface, or an embedded display project, this controller delivers the features and flexibility you need.

Key Features

• VGA Output: Standard 15-pin D-type VGA interface for real-time video image transmission to any compatible display
• PS/2 Interface Support: Connect PS/2 mice and keyboards with true full-key rollover (no key conflicts), ultra-low latency via hardware interrupt, and broad OS compatibility including legacy systems
• Built-in Graphics Library: Powerful onboard graphics engine for rendering 2D visuals, sprites, and game scenes directly from your microcontroller
• Game Engine: Integrated game engine framework enabling rapid development of interactive applications and retro-style games
• ANSI/VT Terminal Emulator: Full terminal emulation for serial communication, debugging, and command-line interfacing
• CP2104 USB-to-UART Bridge: Reliable USB connectivity for programming and serial communication
• Rated Capacity: 40–1000 VA

Why Choose PS/2?

• True Full-Key Rollover: Every simultaneous keypress is registered — no compromises
• Lower Latency: PS/2 uses hardware interrupts rather than USB polling, delivering faster and more reliable response times
• Superior Compatibility: Works flawlessly with a wide range of operating systems, including legacy environments where USB drivers may not be available

What is VGA?

VGA (Video Graphics Array) is a widely adopted display standard that transmits processed video signals from a graphics source to a monitor in real time. The 15-pin D-type interface is divided into three rows of five pins each, supporting full-color display output.

Specifications

• Model: VGA32 V1.4
• Color/Variant: VGA32 Module with CP2104
• Rated Capacity: 40–1000 VA
• High-Concern Chemicals: None
• Made in: Mainland China

Related Products You May Like

Explore more tools and accessories in our store:

• 792LEDs 510k L7 Large Red Light Therapy LED Panel – Full Body Use
• Bincoo Coffee Moka Pot Espresso Maker – Home Barista Accessories
• Bincoo DM08 Starry Electric Coffee Grinder – Wireless Portable Burr Mill

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: Is the VGA32 V1.4 Controller compatible with ESP32-based microcontrollers?

A: Yes. The VGA32 V1.4 module is specifically designed for ESP32 (MCU32) platforms, enabling VGA display output, PS/2 input, graphics rendering, and terminal emulation directly from your ESP32 project.

Q: Does the VGA32 V1.4 support both PS/2 mouse and keyboard simultaneously?

A: Yes. The module features a dedicated PS/2 controller that supports concurrent connection of both a PS/2 mouse and a PS/2 keyboard, with true full-key rollover and low-latency hardware interrupt handling.

Q: What display can I connect to the VGA32 V1.4 controller?

A: Any monitor or display with a standard 15-pin D-type VGA input is compatible. The module transmits real-time video signals from the onboard graphics engine to your connected display.

Q: What is the CP2104 chip used for on this module?

A: The CP2104 is a USB-to-UART bridge IC that enables reliable USB connectivity between the VGA32 module and your computer for programming, firmware uploads, and serial communication/debugging.
