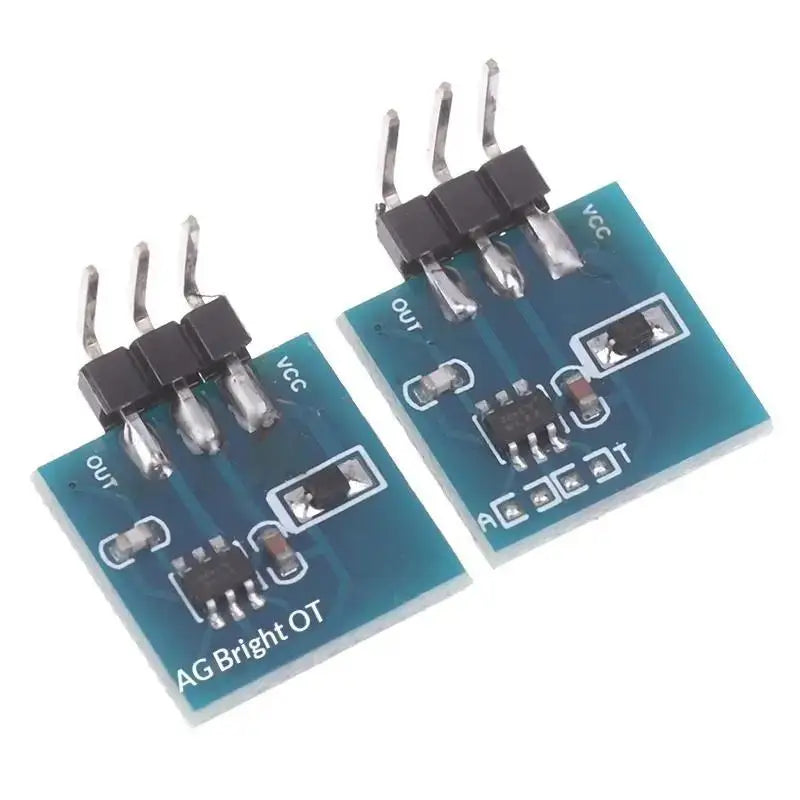

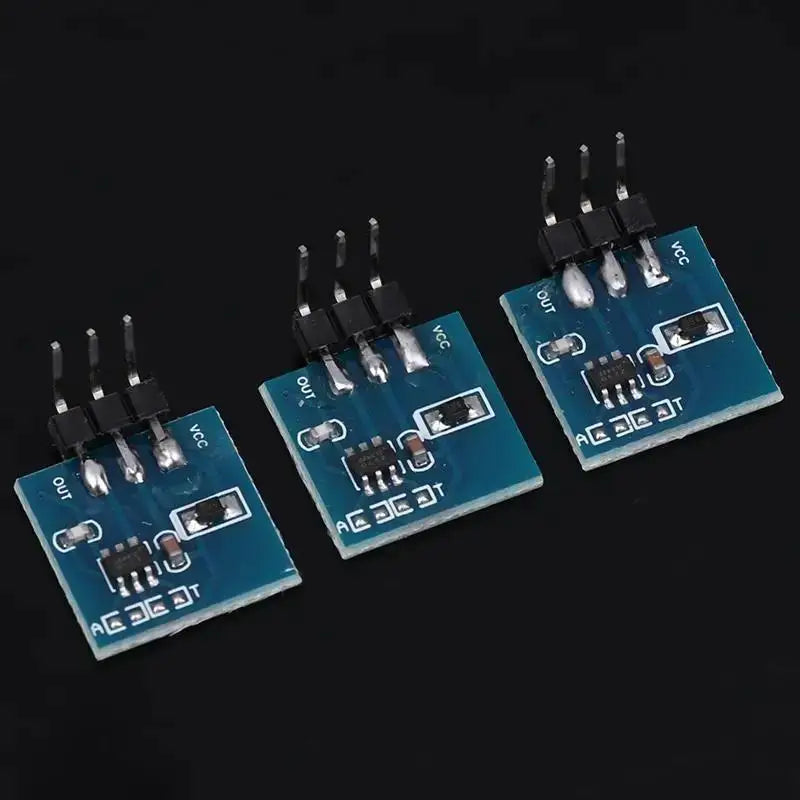

TTP223B Capacitive Touch Sensor Module 1-Channel DIY

Upgrade your electronics DIY projects with the TTP223B 1-Channel Jog Digital Capacitive Touch Sensor Module. Built on a robust FR-4 fiberglass PCB, this compact sensor uses high-precision capacitive sensing technology to detect even the lightest finger touch — no physical pressing required. Available in 2 color options to suit your build aesthetic.

Why Choose the TTP223B Touch Sensor Module?

• Ultra-Sensitive Touch Detection: High-precision capacitive sensing IC responds instantly to the lightest touch input.
• No Mechanical Wear: Unlike traditional push buttons, there are no moving parts — meaning zero mechanical abrasion and a significantly longer service life.
• Faster Response Time: Delivers quicker signal output compared to standard mechanical switches, ideal for time-sensitive applications.
• Durable FR-4 Fiberglass PCB: Industrial-grade circuit board construction stands up to daily use and long-term deployment.
• Easy Integration: Simple wiring interface makes it beginner-friendly and compatible with Arduino, Raspberry Pi, and other microcontroller platforms.
• Versatile Applications: Perfect for smart home modifications, DIY lock systems, lighting controls, craft electronics, and prototyping projects.
• 2 Color Options: Choose the finish that best complements your project design.

Product Specifications

• Model: TTP223B
• Channels: 1 (Single Channel)
• Output Type: Digital (Jog / Toggle modes)
• PCB Material: FR-4 Glass Fiber
• Color Options: 2 available
• Compatibility: Arduino, Raspberry Pi, and standard 3.3V–5V microcontrollers

Ideal For

• DIY smart home control panels
• Electronic lock modifications
• LED and lighting touch controls
• Prototyping and maker projects
• Educational electronics experiments
• Craft and hobby electronics builds

For further guidance on safe DIY electronics practices, visit the U.S. Consumer Product Safety Commission (CPSC) for helpful safety information on electronic components and hobby projects.

Frequently Asked Questions

Q: What is the TTP223B Capacitive Touch Sensor Module used for?

A: The TTP223B 1-Channel Digital Capacitive Touch Sensor Module is designed for DIY electronics projects such as smart home modifications, touch-activated lighting, electronic lock controls, and microcontroller prototyping (Arduino, Raspberry Pi). It detects a finger touch without any physical button press, making it ideal for clean, modern control interfaces.

Q: What is the TTP223B Touch Sensor Module made of?

A: The module is built on a durable FR-4 Glass Fiber PCB, the same industrial-grade material used in professional electronics. This ensures reliable performance, structural rigidity, and resistance to wear over extended daily use.

Q: How does a capacitive touch sensor differ from a regular push button?

A: A capacitive touch sensor like the TTP223B detects the electrical field change caused by a fingertip, requiring no physical pressure or moving parts. This results in faster response times, no mechanical wear, and a much longer operational lifespan compared to traditional mechanical push buttons.

Q: Is the TTP223B compatible with Arduino and Raspberry Pi?

A: Yes! The TTP223B operates on 3.3V–5V logic, making it fully compatible with Arduino, Raspberry Pi, ESP8266, ESP32, and most popular microcontroller development boards. Its simple digital output (HIGH/LOW) makes wiring and code integration straightforward for beginners and experienced makers alike.
