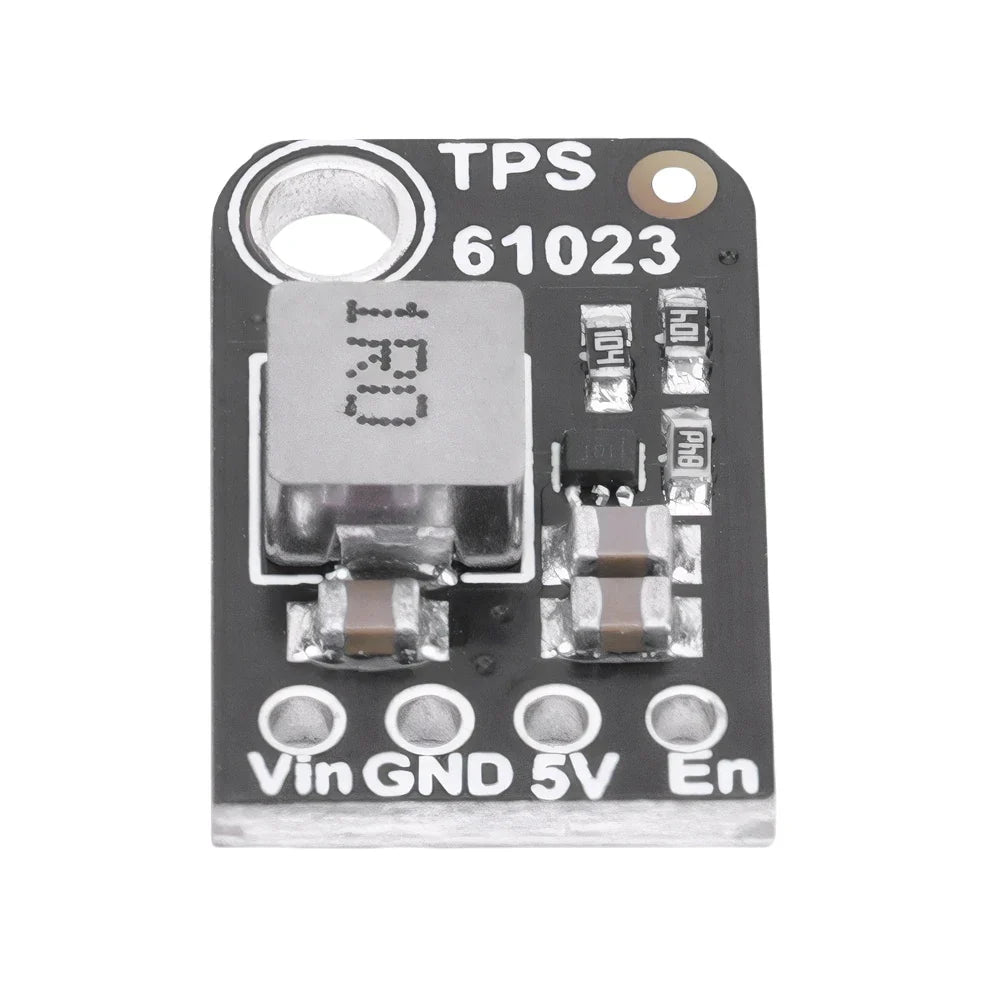

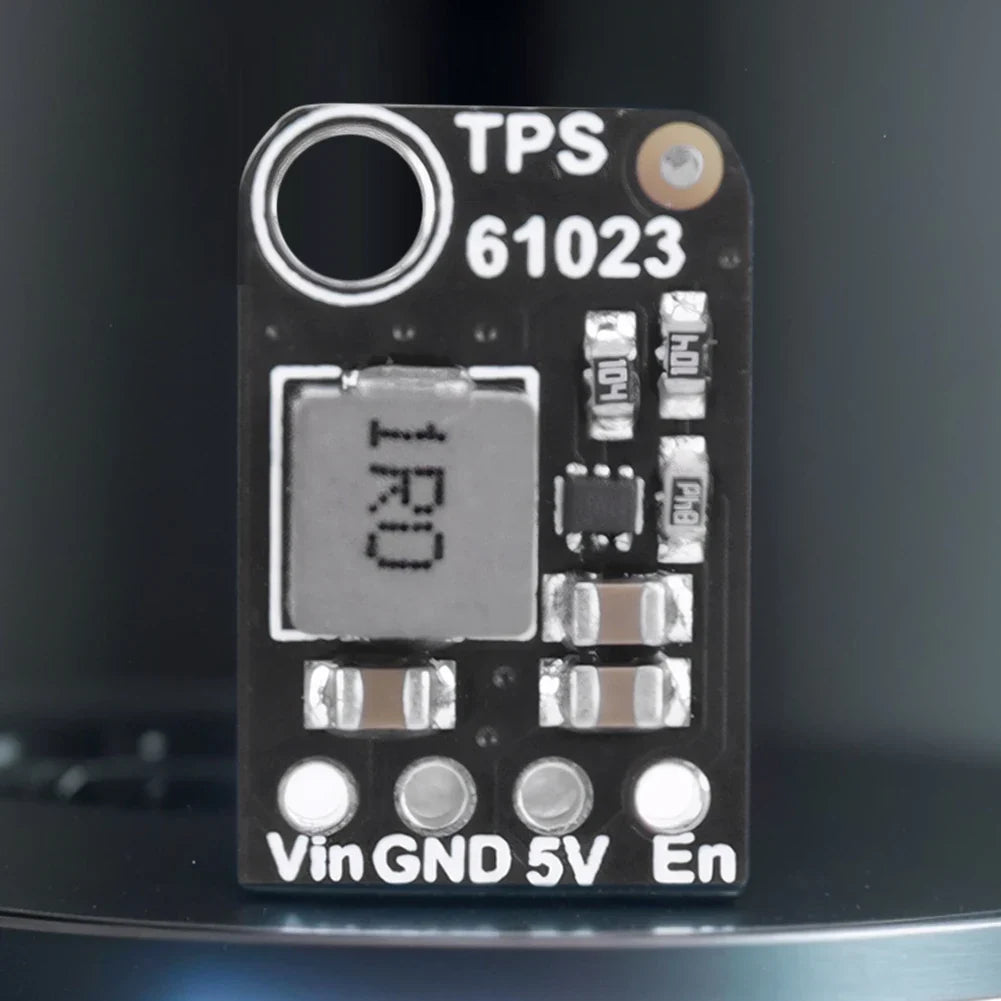

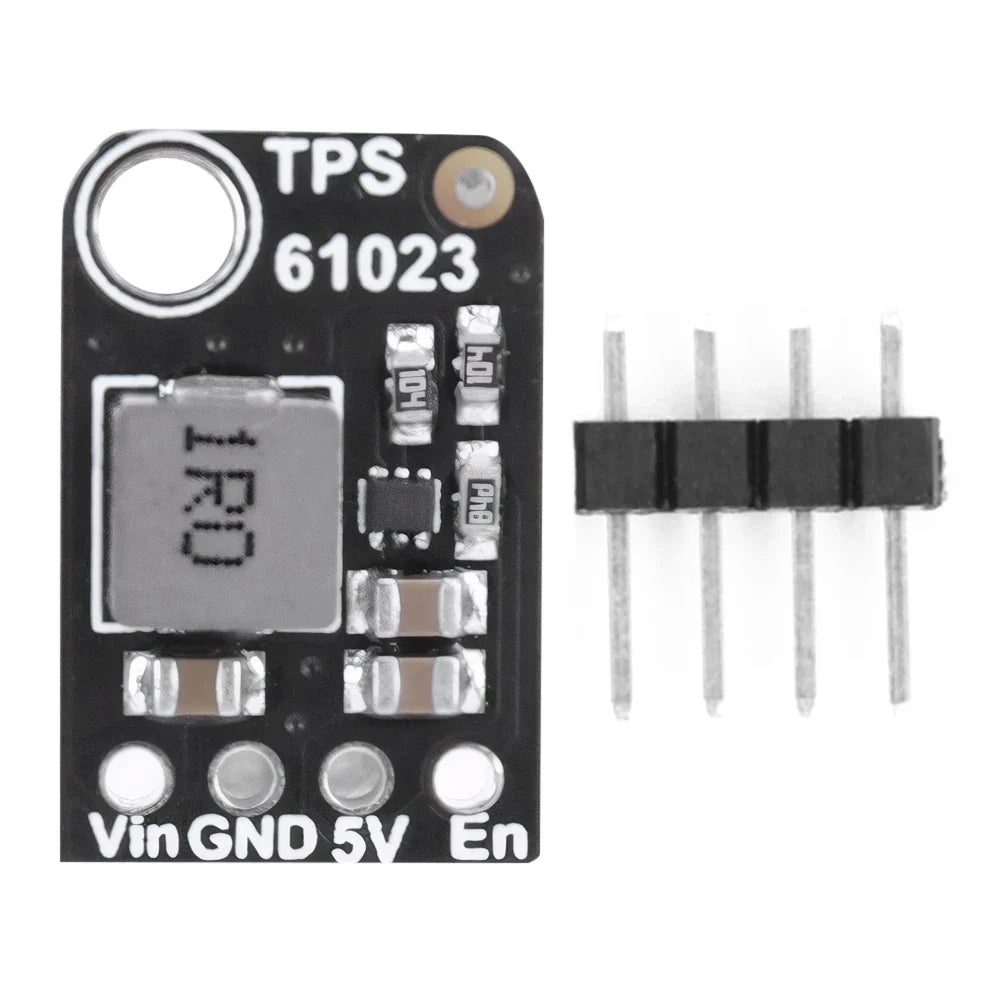

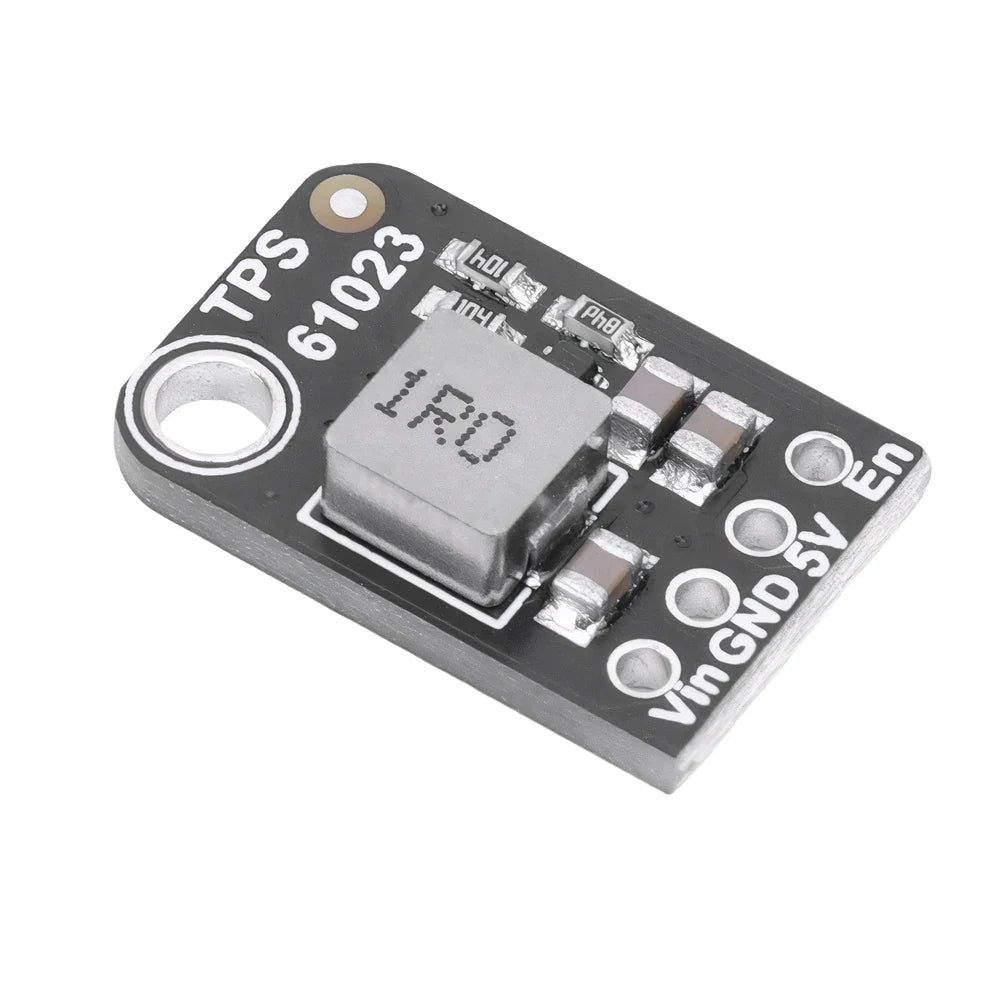

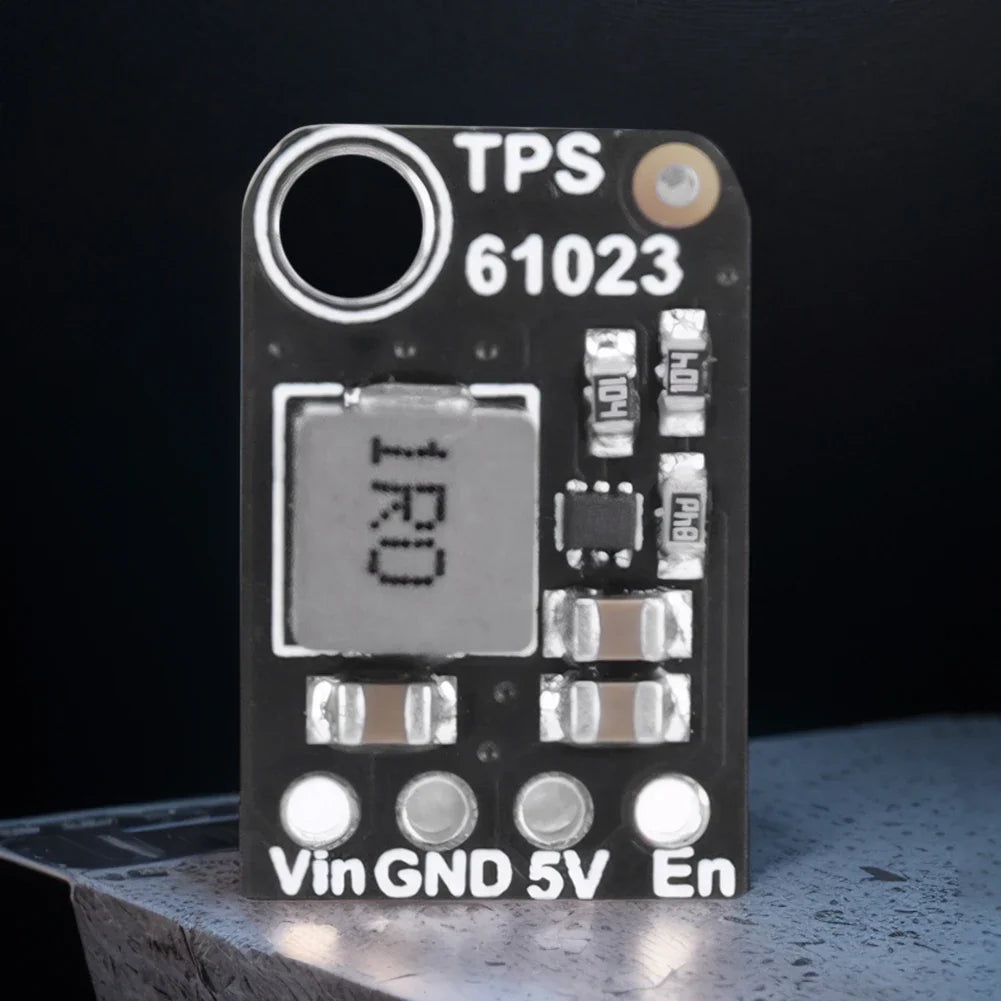

TPS61023 Mini Boost Module 5V 1A Step-Up Regulator Board

TPS61023 Mini Boost Module – Compact 5V 1A Step-Up Voltage Regulator

The TPS61023 Mini Boost Module is a precision-engineered step-up voltage regulator board that converts a lower input voltage to a stable 5V DC output at up to 1A. Built around Texas Instruments' reliable TPS61023 IC, this ultra-compact booster board is ideal for DIY electronics projects, portable power banks, microcontroller power supplies, sensor nodes, and any application requiring a regulated 5V rail from a lower-voltage source such as Li-ion or LiPo batteries.

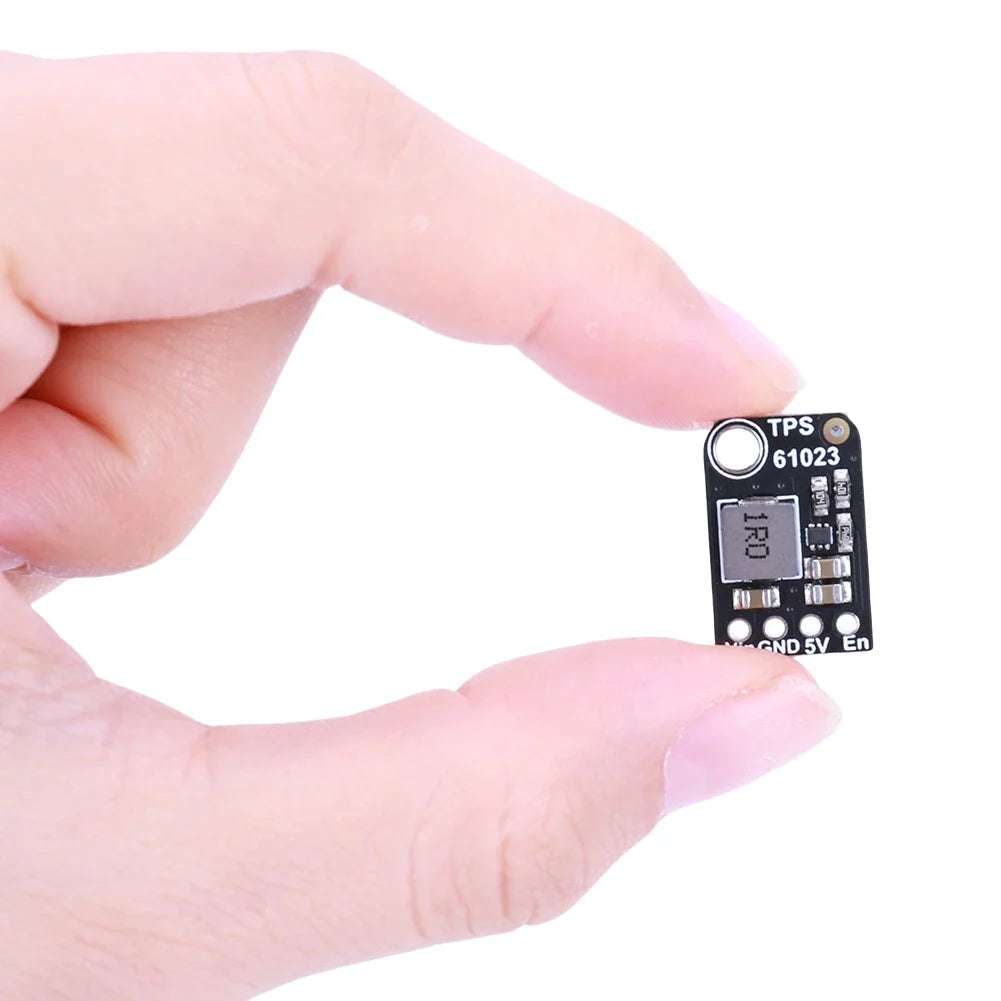

Measuring just 18 × 11 × 5 mm, this board delivers impressive performance in a tiny footprint — perfect for space-constrained builds without compromising on reliability or safety features.

Key Features

• Stable 5V / 1A Output: Provides a consistent, regulated 5V output with up to 1A continuous current — suitable for powering microcontrollers, sensors, and small peripherals.
• Wide Input Voltage Range: Accepts a range of lower input voltages (typical Li-ion / LiPo single-cell range), making it versatile for battery-powered designs.
• Output Short-Circuit Protection: Built-in protection circuitry guards against short circuits at the output, keeping your connected devices safe during operation.
• Overvoltage Protection: Advanced overvoltage safeguards prevent excessive voltage from reaching downstream components, extending the life of your electronics.
• Thermal Shutdown Protection: Automatic thermal shutdown activates if the board exceeds safe operating temperatures, preventing damage and ensuring long-lasting performance.
• Ultra-Compact Form Factor: At only 18 × 11 × 5 mm, this board integrates easily into tight enclosures, wearables, and compact PCB layouts.
• High Efficiency: The TPS61023 IC is designed for high conversion efficiency, minimising battery drain in portable applications.
• Easy Integration: Clearly labelled input/output pads make soldering and integration straightforward for hobbyists and engineers alike.

Specifications

• IC Chip: Texas Instruments TPS61023
• Output Voltage: 5V (fixed)
• Output Current: Up to 1A

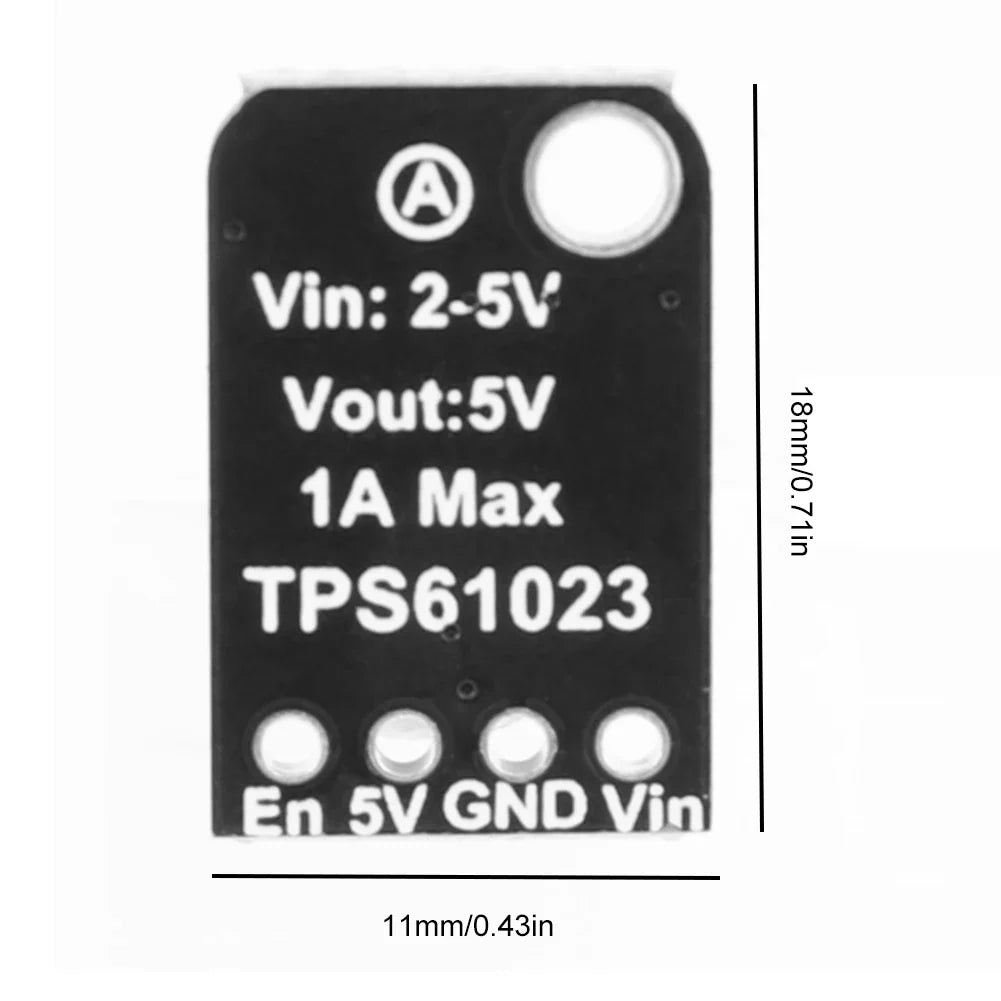

• Board Dimensions: 18 mm × 11 mm × 5 mm
• Protection: Short-circuit, overvoltage, thermal shutdown
• Topology: Synchronous step-up (boost) converter

Ideal Applications

• DIY battery-powered projects and portable chargers
• Arduino, ESP32, Raspberry Pi Pico power supply modules
• IoT sensor nodes and wireless devices
• Wearable electronics and compact embedded systems
• 3.3V or low-voltage battery to 5V USB-level conversion

For guidance on electronics safety standards and best practices in DIY circuit design, visit the U.S. Consumer Product Safety Commission (CPSC).

Frequently Asked Questions

Q: What does the TPS61023 Mini Boost Module do?

A: The TPS61023 Mini Boost Module is a step-up (boost) voltage regulator that takes a lower input voltage — such as from a single-cell Li-ion or LiPo battery — and converts it to a stable, regulated 5V DC output at up to 1A. It is widely used in DIY electronics, portable power supplies, and microcontroller projects.

Q: What safety protections does this boost regulator board include?

A: This board includes three key built-in protections: output short-circuit protection to safeguard connected devices, overvoltage protection to prevent excess voltage from reaching downstream components, and thermal shutdown protection which automatically disables the board if it gets too hot — helping ensure long-term reliability and component safety.

Q: What input voltage range does the TPS61023 Mini Boost Module accept?

A: The TPS61023 IC is designed to operate over a range typical of single-cell Li-ion/LiPo batteries (generally around 0.5V to 5V input). For precise input voltage limits and datasheet specifications, refer to the official Texas Instruments TPS61023 datasheet to confirm compatibility with your application.

Q: How do I connect and use this boost module?

A: The board features clearly labelled input (VIN, GND) and output (VOUT, GND) solder pads. Connect your lower-voltage power source to the input pads and draw your regulated 5V supply from the output pads. No additional components are required for basic operation — the module is ready to integrate into your circuit right away.
