RC Snubber Circuit Module – Relay Contact Protection 5V–400V

RC Snubber Circuit Module – Relay Contact Protection

The RC Snubber Circuit Module is a compact, ready-to-install electronic protection module designed to safeguard relay contacts from voltage spikes and electrical surges. Using a series resistor-capacitor (RC) network connected in parallel with the switching device, this board effectively absorbs transient voltage surges, helping extend the operational life of your relays and switching components.

Key Features

• Wide voltage compatibility: Supports AC/DC 5V–400V applications
• RC snubber design: Resistor and capacitor connected in series, placed in parallel with the switching device to suppress voltage transients

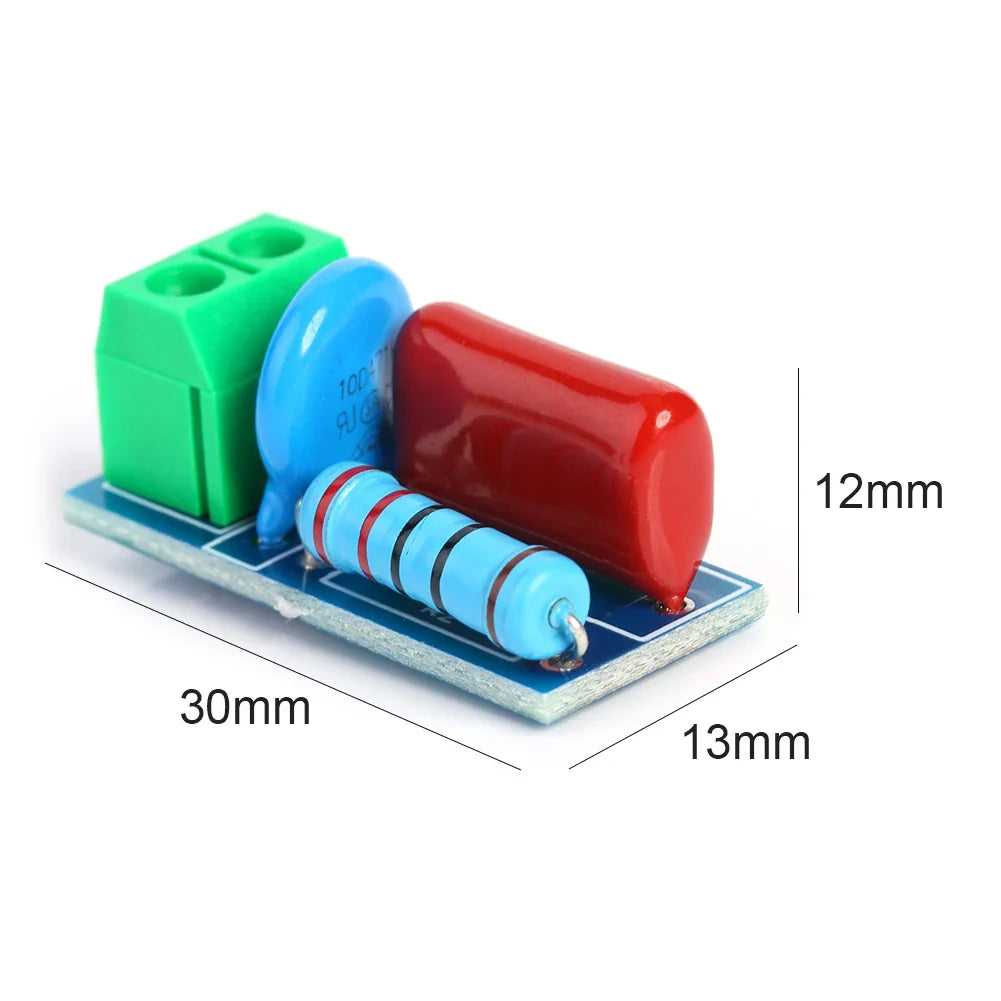

• Compact form factor: Measures just 30 × 13 × 12 mm (1.18 × 0.51 × 0.47 in) — easy to integrate into tight spaces
• 4 color options: Choose the variant that best fits your build or project
• Plug-and-play ready: No additional configuration needed — works straight out of the box
• Broad application: Suitable for relay boards, motor controllers, solenoids, and other inductive load switching circuits

How It Works

An RC absorption (snubber) circuit is a protective structure in which a resistor and a capacitor are connected in series, and this series combination is then connected in parallel with a switching device such as a relay contact or transistor. When the switch opens, the energy stored in inductive loads would otherwise generate a high-voltage spike — the RC snubber absorbs and dissipates this energy, protecting both the switching component and surrounding circuitry.

Specifications

• Type: RC Snubber / Absorption Circuit Module
• Voltage Range: AC/DC 5V – 400V
• Dimensions: 30 × 13 × 12 mm / 1.18 × 0.51 × 0.47 in
• Condition: New
• Available Colors: 4 options

Applications

• Relay contact protection in home automation and industrial controls
• Motor driver and solenoid switching circuits
• DIY electronics and prototyping boards
• Power supply and switching circuit noise suppression

For general guidance on electrical safety and circuit protection best practices, visit the U.S. Consumer Product Safety Commission (CPSC).

Frequently Asked Questions

Q: What does an RC snubber circuit module do for relay contacts?

A: The RC snubber circuit module connects a resistor-capacitor series network in parallel with a relay contact or switching device. When the relay opens, inductive loads can generate sudden voltage spikes. The RC module absorbs and dissipates that energy, protecting the relay contacts and nearby components from premature wear or damage, and helping to reduce electrical noise in the circuit.

Q: What voltage range does this RC absorption circuit module support?

A: This RC snubber module supports a wide voltage range of AC/DC 5V to 400V, making it compatible with a broad variety of switching and relay applications — from low-voltage control circuits to higher-voltage AC systems.

Q: Is this RC snubber module easy to install?

A: Yes. The module is ready to use straight out of the box. Simply connect it in parallel with your relay contact or switching device. Its compact 30 × 13 × 12 mm footprint makes it easy to fit into existing circuit layouts, enclosures, or prototyping setups with minimal modification.
