Portable Leeb Hardness Tester ETIPD – 6-Scale Metal Tester

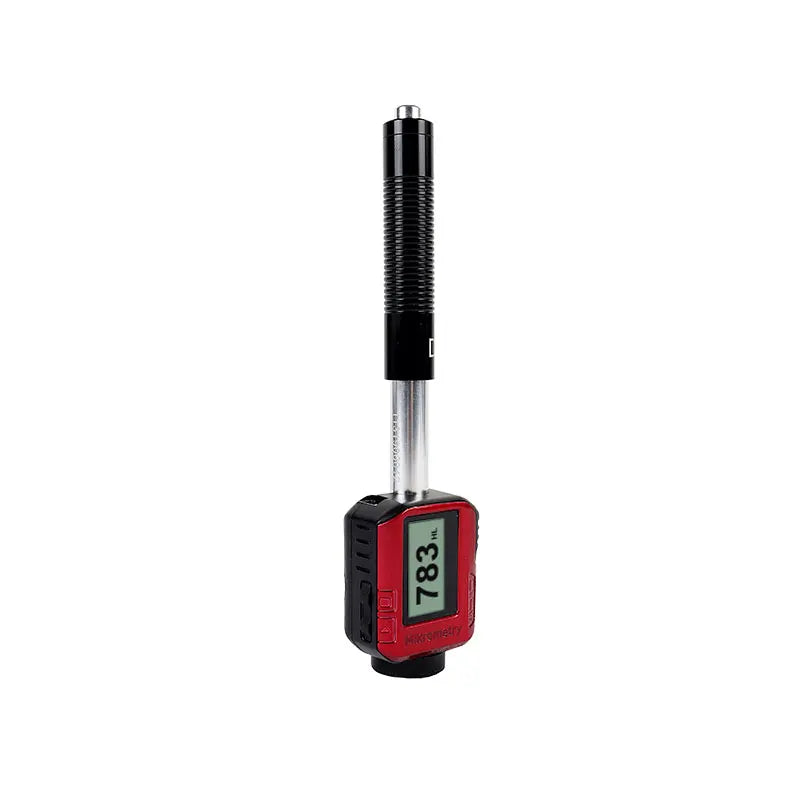

Portable 2-in-1 Leeb Hardness Tester (Model ETIPD)

The Leeb Hardness Tester ETIPD is a compact, all-in-one metal hardness testing instrument engineered for professionals who need fast, accurate results in the field or on the shop floor. With its fully self-contained design — impact device and main body integrated into a single 100 g unit — there are no cables or external probes to juggle. Simply point, press, and read your results instantly on the crisp backlit LCD.

Built to meet CE certification standards and complying with GB/T17394, GB/T1172, ASTM A956 & DIN, this tester delivers ±4 HLD accuracy across all six common hardness scales: HLD, HRC, HRB, HB, HV, and HSD. The integrated impact-direction sensor automatically identifies test orientation across a full 360°, eliminating manual compensation and operator error.

Made in Mainland China.

Key Features

• Self-contained design: Impact Device D fully integrated — no external cables required
• 360° automatic direction detection: Built-in impact direction sensor for hands-free orientation compensation
• Multi-scale conversion: Instantly displays results in HLD, HRC, HRB, HB, HV, and HSD
• High-contrast backlit LCD: 128×64 dot matrix, 1-inch display — easy to read in any lighting condition
• 500-reading onboard memory: Stores data with date and time stamp
• USB data transfer: Full PC communication with free bundled software for recording and analysis
• Rechargeable Li-ion battery: Charges directly via USB port — no proprietary chargers needed
• Intelligent sleep mode: Maximizes battery life during extended field use
• Easy calibration: Straightforward setup using the included test block
• Lightweight & portable: Only ~100 g and 147 × 35 × 22 mm — fits in a shirt pocket

Technical Specifications

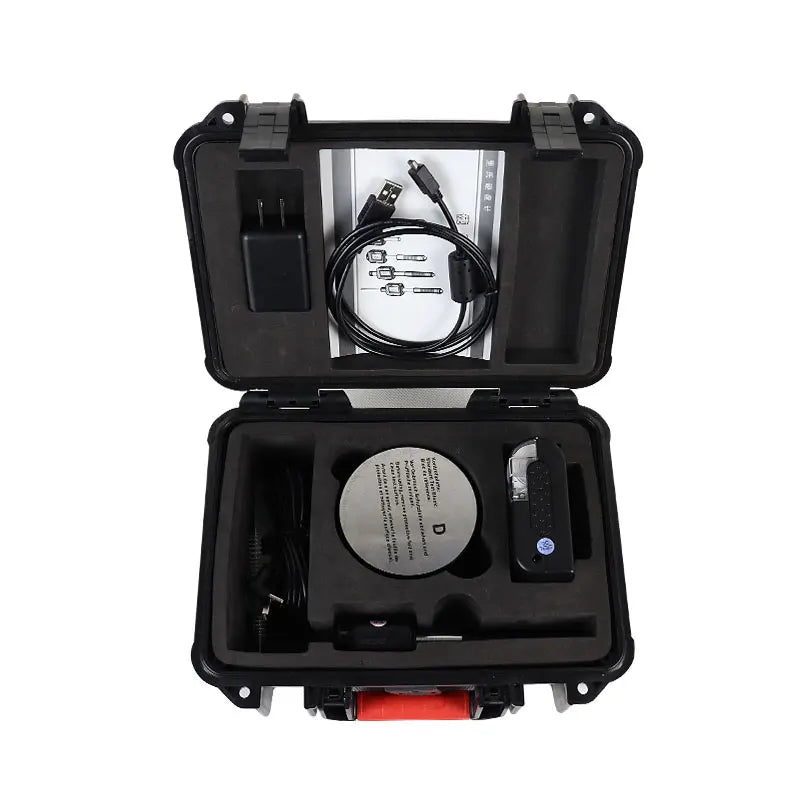

What's in the Box

• Leeb Hardness Tester (ETIPD)

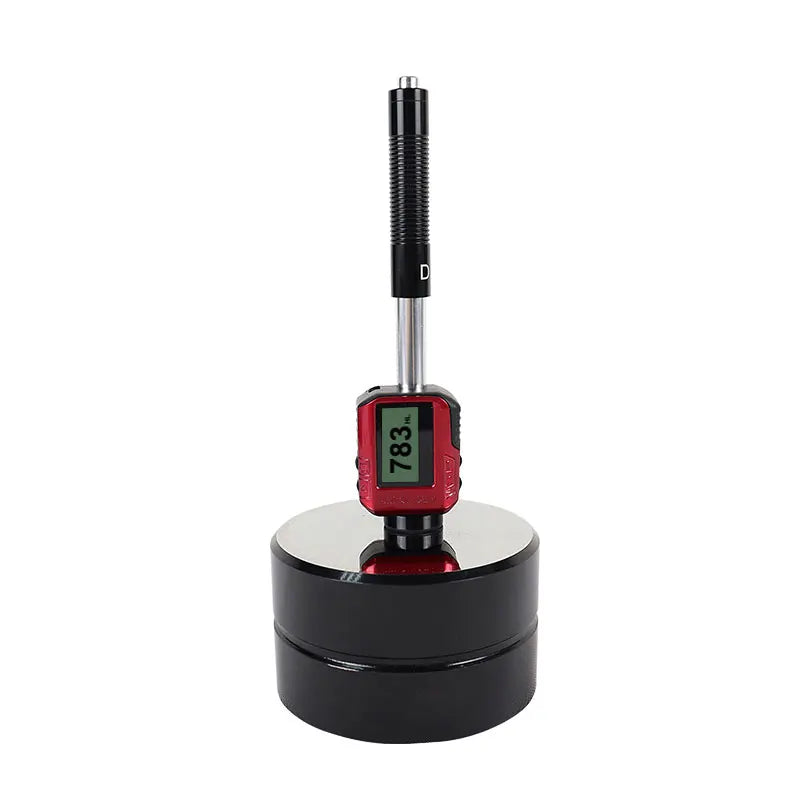

• Test Block
• USB Charger & USB Cable
• Support Ring
• Cleaning Brush
• Protective Carrying Case
• PC Software (free)

Optional accessories: Mini printer + charger cable for printer (sold separately).

You May Also Like

• 2.3m Flexible Car Drain Cleaning Brush – Sunroof Pipe Tool
• 792LEDs 510k L7 Large Red Light Therapy LED Panel – Full Body Use

Learn more: OSHA on personal protective equipment

Frequently Asked Questions

Q: What hardness scales does the ETIPD Leeb Hardness Tester support?

A: The ETIPD supports six hardness scales: HLD (Leeb), HRC, HRB, HB (Brinell), HV (Vickers), and HSD (Shore). All scale conversions are performed automatically onboard, so you can read results in whichever unit your application requires without manual calculation.

Q: Does this hardness tester require external cables or a separate probe?

A: No. The ETIPD is a fully self-contained 2-in-1 design — the impact device (Impact Device D) is built directly into the main body. There are no external cables required for testing. A USB cable is included only for PC data transfer and battery charging.

Q: How is data transferred to a computer?

A: The tester connects to a PC via the included USB cable. Free PC software is bundled with the unit, allowing you to download, record, and analyze up to 500 stored readings (with date and time stamps) directly on your computer.

Q: Does it work in any orientation?

A: Yes. The integrated impact direction sensor automatically detects and compensates for test orientation across a full 360°. Whether you are testing overhead, sideways, downward, or at any angle, the tester adjusts automatically — no manual direction settings are needed.
