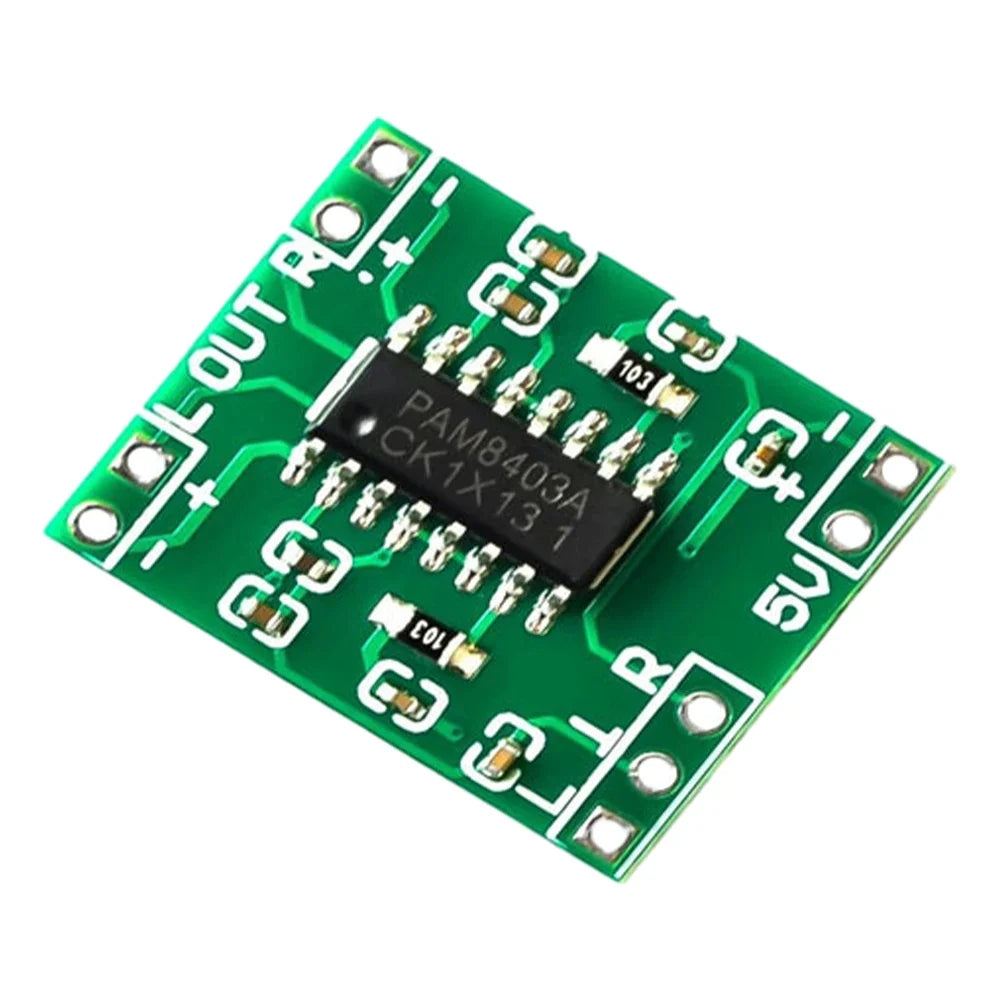

PAM8403 Mini Digital Amplifier Board 2-Channel Audio Module

PAM8403 Mini Digital Amplifier Board – 2-Channel Audio Power Module

Upgrade your DIY audio projects with the PAM8403 Mini Digital Amplifier Board — a compact, dual-channel audio power amplifier module designed for crystal-clear sound reproduction. Powered via USB (5V–5.5V), this versatile little board delivers impressive, noise-free audio performance in an ultra-small footprint, making it a must-have component for electronics enthusiasts, makers, and hobbyists.

Key Features

• Noise-Free Audio: Advanced noise suppression technology ensures a clean, interference-free listening experience — even when no audio input is connected.
• Dual-Channel (Stereo) Output: Two independent audio channels deliver rich, balanced stereo sound from a single compact board.
• USB Power Supply (5V–5.5V): Conveniently powered from any standard USB source — ideal for portable and desktop builds alike.
• Volume Control Support: Built-in volume control capability lets you fine-tune audio output to suit your project or listening preference.
• Ultra-Compact Design: The miniature PCB form factor (approx. 22mm) fits neatly into tight enclosures, speaker boxes, or wearable projects without compromising performance.
• Easy Integration: Clearly labelled input/output pads make wiring straightforward — perfect for both beginners and experienced builders.
• Wide Compatibility: Works seamlessly with microcontrollers (Arduino, Raspberry Pi), MP3 modules, Bluetooth audio receivers, and more.

Technical Specifications

• Chip: PAM8403
• Operating Voltage: 5V–5.5V (USB powered)
• Channels: 2 (Stereo)
• Output Power: Up to 3W per channel
• PCB Size: Approx. 22mm
• Power Supply: USB

Ideal For

• DIY Bluetooth speaker builds
• Arduino & Raspberry Pi audio projects
• Portable speaker enclosures
• Desktop mini speaker systems
• Educational electronics kits

Whether you're building a weekend speaker project or integrating audio into a larger embedded system, the PAM8403 Mini Digital Amplifier Board delivers dependable performance in a package that earns its place in any maker's toolkit.

For guidance on safe electronics practices and working with low-voltage components, visit the U.S. Consumer Product Safety Commission (CPSC).

Frequently Asked Questions

Q: What is the PAM8403 Mini Digital Amplifier Board and what does it do?

A: The PAM8403 Mini Digital Amplifier Board is a compact, dual-channel (stereo) audio power amplifier module based on the PAM8403 chip. It takes an audio input signal and amplifies it to drive small speakers, delivering up to 3W per channel with exceptional noise suppression for clean, clear sound output in DIY electronics projects.

Q: What power supply does the PAM8403 amplifier board require?

A: The board is designed to operate on 5V–5.5V and can be conveniently powered via any standard USB power supply or port — making it easy to integrate into portable builds, desktop setups, or projects powered by a USB power bank or computer.

Q: Is the PAM8403 Mini Digital Amplifier Board compatible with Arduino and Raspberry Pi?

A: Yes! The PAM8403 board is widely used in maker and hobbyist projects alongside microcontrollers like Arduino and single-board computers like Raspberry Pi. Its clearly labelled pads and standard operating voltage make wiring and integration straightforward for both beginners and experienced builders.

Q: What size speakers can I connect to this amplifier board?

A: The PAM8403 module is best suited for small passive speakers, typically in the 4Ω or 8Ω range with a power rating of 3W or less per channel. It's ideal for compact speaker enclosures, desktop speakers, and DIY portable audio builds.
