Mode B Gigabit PoE Injector Patch Panel 802.3af 8-Port 1000Mbps

Mode B Gigabit PoE Injector – 8-Port 1000Mbps Patch Panel (802.3af)

Power and connect up to 8 IP cameras, Wi-Fi access points, or other 802.3af-compatible devices with a single, streamlined unit. The Mode B Gigabit PoE Injector Patch Panel delivers full 1000Mbps (Gigabit) data speeds while simultaneously supplying Power over Ethernet — no separate power adapters cluttering your installation.

Key Features

• 802.3af Standard Compliance: Universally compatible with IP cameras, VoIP phones, wireless access points, and more.
• Gigabit Speed (1000Mbps): Full-speed data transmission on every port — no bottlenecks, no compromises.

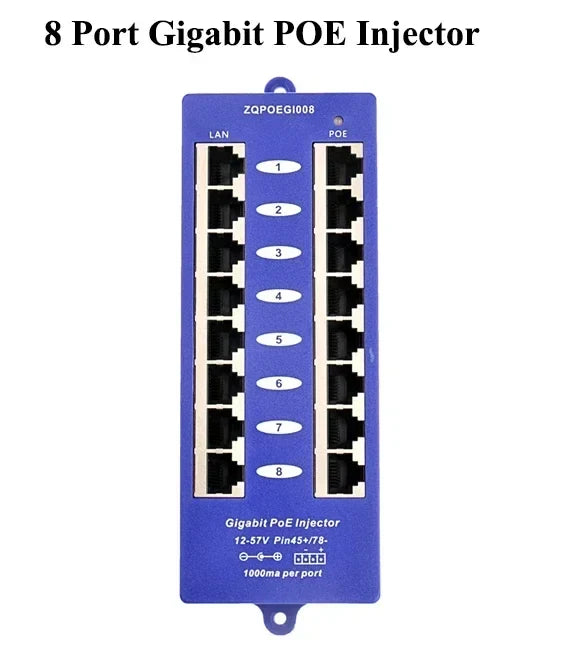

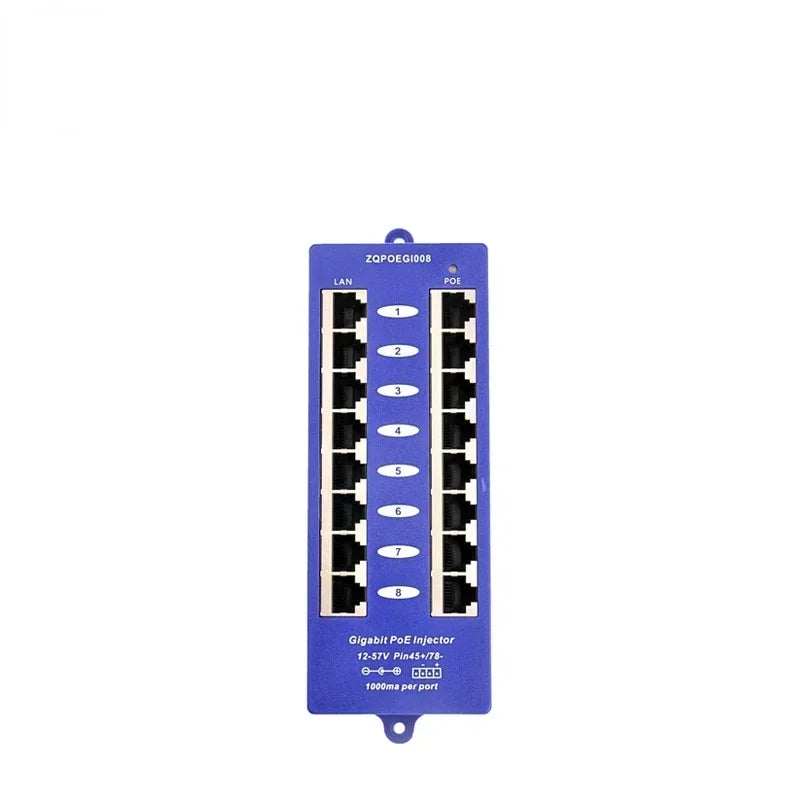

• 8-Port Capacity: Power and connect up to 8 PoE devices from a single patch panel unit.
• Mode B Wiring: Uses spare pairs (pins 4/5 and 7/8) for power delivery, making it compatible with a wide range of network setups.
• Plug-and-Play Setup: No software configuration required — connect your devices and go.
• Tidy, Rack-Friendly Design: Clean patch-panel form factor keeps your network cabinet organized and professional.
• Available in 2 color options to suit your installation environment.

Ideal For

• IP security camera systems
• Wi-Fi access point deployments
• Small business and home network buildouts
• VoIP phone installations
• Any structured cabling environment requiring PoE

Technical Specifications

For more information on structured network cabling standards and PoE technology, visit the NIST Communications Technology Laboratory.

Frequently Asked Questions

Q: What is a Mode B Gigabit PoE Injector Patch Panel and what does it do?

A: A Mode B Gigabit PoE Injector Patch Panel allows you to deliver both electrical power and Gigabit (1000Mbps) data over a single Ethernet cable to up to 8 connected devices — such as IP cameras or Wi-Fi access points — that comply with the IEEE 802.3af standard. Mode B specifically uses the cable's spare wire pairs for power, making it compatible with a broad range of network hardware.

Q: Is this PoE patch panel compatible with my existing IP cameras or access points?

A: Yes — as long as your devices are IEEE 802.3af PoE-compatible, this Gigabit PoE injector patch panel will power and connect them without issue. It is universally compatible with 802.3af-compliant IP cameras, wireless access points, VoIP phones, and similar networked devices.

Q: Do I need a PoE-capable switch to use this injector patch panel?

A: No. That's the key advantage of a PoE injector patch panel — it adds Power over Ethernet capability to your existing standard (non-PoE) network switch or router. Simply connect your switch to the injector, and it will pass both data and power through to your connected devices.

Q: How many devices can I power with this 8-port PoE patch panel?

A: This panel supports up to 8 IEEE 802.3af devices simultaneously, making it ideal for small-to-medium security camera systems or multi-point Wi-Fi deployments.
