LXW20-11M Micro Limit Switch Push Plunger Silver Contact 1NO 1NC

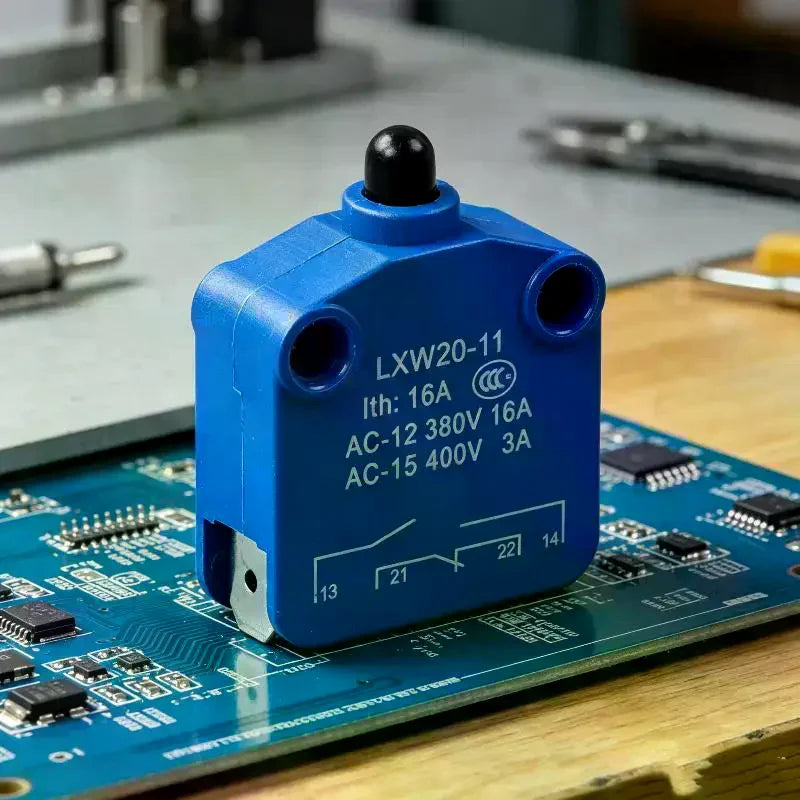

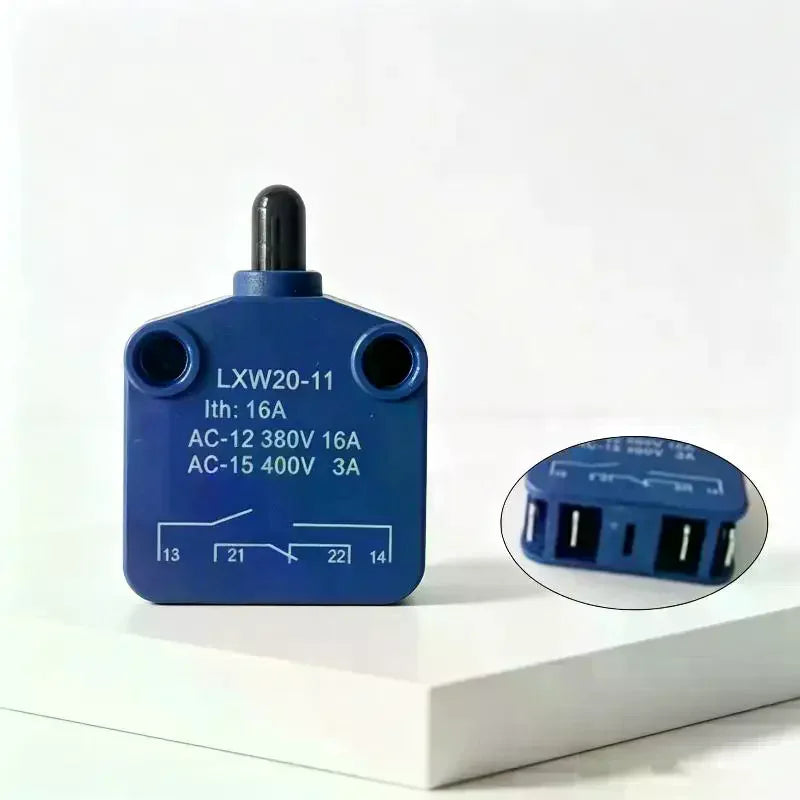

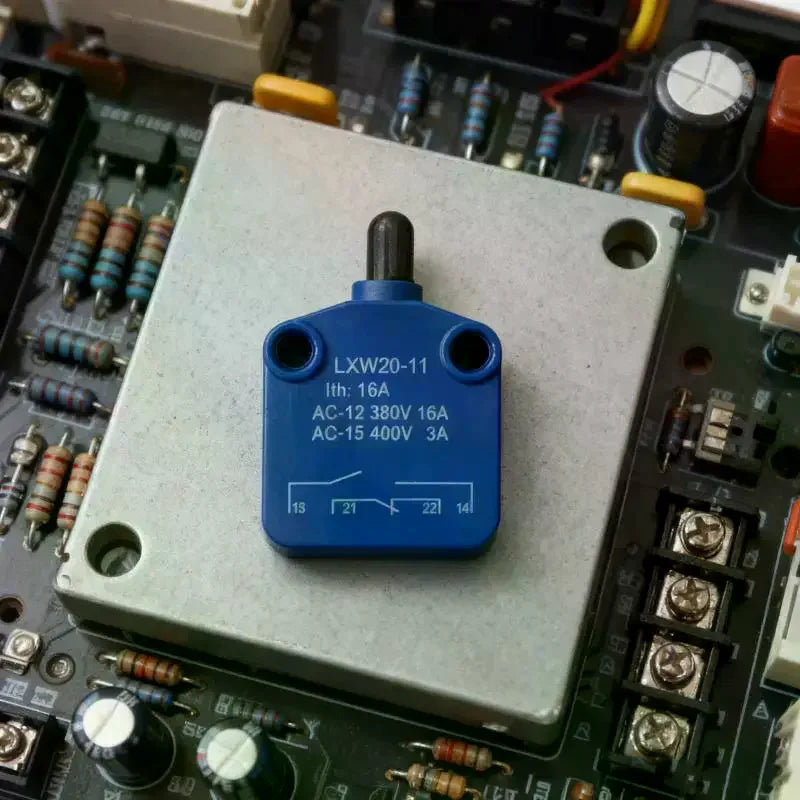

LXW20-11M Micro Limit Switch – Push Plunger with Silver Alloy Contact

The LXW20-11M Micro Limit Switch is a compact, high-precision travel switch designed for industrial automation, CNC machines, 3D printers, conveyor systems, and general electrical control circuits. With its push-plunger (slug column) actuator and silver alloy contacts, this miniature limit switch delivers reliable, millisecond-level circuit switching with outstanding repeatability.

Key Features

• Ultra-Sensitive Trigger Response: High-purity silver alloy conductive contacts combined with a low contact resistance structure deliver millisecond-level circuit on/off switching action, effectively reducing false triggering and improving the operational stability of connected equipment.
• Flame-Retardant, Impact-Resistant Housing: The enclosure is constructed from high-grade flame-retardant ABS engineering plastic, offering excellent insulation and corrosion resistance. This helps prevent electrical leakage risks, adapts to demanding industrial and everyday environments, and extends product service life.
• 1NO + 1NC Configuration: Standard one normally-open (1NO) and one normally-closed (1NC) contact arrangement for flexible circuit integration across a wide variety of control applications.
• Push Plunger (Slug Column) Actuator: Straight push-type actuation for direct, precise position detection in tight spaces where lever-type switches may not fit.
• Compact & Versatile: Miniature form factor makes it ideal for space-constrained installations. Available in multiple colour options to suit your wiring or identification needs.
• Durable for Daily & Industrial Use: Built to withstand repeated actuation cycles, maintaining consistent performance through continuous use in automation setups, machinery, and DIY electronics projects.

Specifications

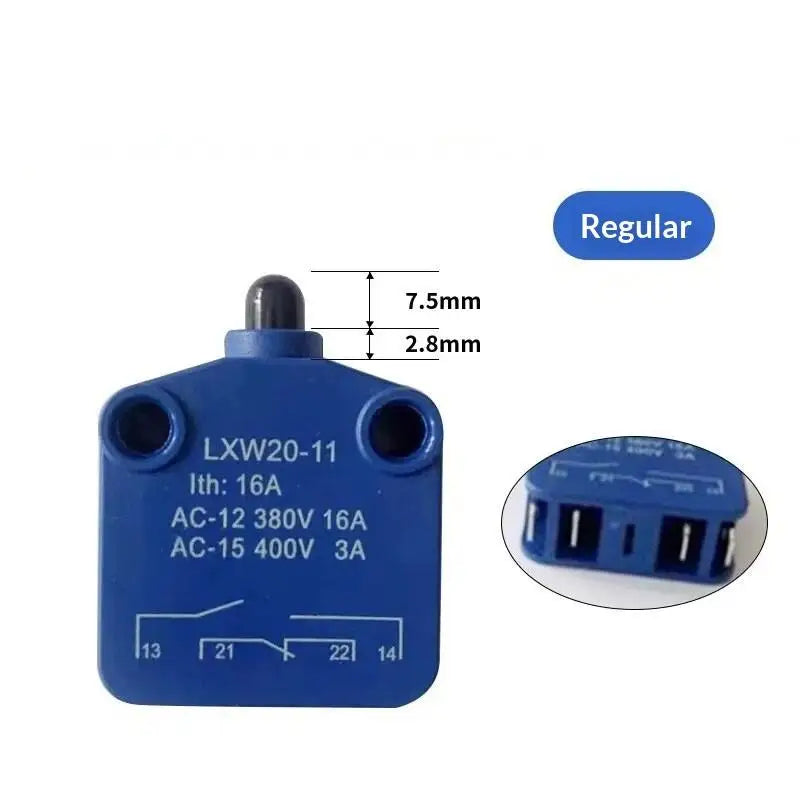

• Model: LXW20-11M
• Actuator Type: Push Plunger / Slug Column
• Contact Configuration: 1NO + 1NC
• Contact Material: Silver Alloy
• Housing Material: Flame-retardant ABS plastic
• Available Colours: Silver, Blue + 2 additional options
• Rated Current: 16A
• Application: Industrial automation, CNC, 3D printers, DIY electronics, conveyor systems

What's in the Box?

• 1 × LXW20-11M Micro Limit Switch (Push Plunger)

Why Choose the LXW20-11M?

Whether you're building a CNC machine, upgrading a 3D printer's end-stop system, or wiring an industrial control panel, the LXW20-11M Micro Limit Switch offers the precision, durability, and reliable switching action you need. Its silver alloy contacts and flame-retardant ABS shell make it a trusted component for both hobbyists and professionals alike.

For guidance on electrical safety standards for industrial switches and control components, refer to the OSHA Electrical Safety Resource.

Frequently Asked Questions

Q: What is the LXW20-11M Micro Limit Switch used for?

A: The LXW20-11M Micro Limit Switch is widely used in industrial automation, CNC machines, 3D printer end-stops, conveyor systems, and general electrical control circuits. Its push-plunger actuator provides precise position detection and circuit control in compact installations.

Q: What contact configuration does the LXW20-11M limit switch have?

A: The LXW20-11M features a standard 1NO (normally open) + 1NC (normally closed) contact configuration, making it compatible with a broad range of control circuit applications and easy to integrate into existing systems.

Q: What makes the silver alloy contacts beneficial in this micro limit switch?

A: High-purity silver alloy contacts provide low contact resistance, which enables millisecond-level switching speed. This reduces the likelihood of false triggering and ensures the connected equipment operates with greater consistency and stability over time.

Q: Is the LXW20-11M limit switch suitable for harsh environments?

A: Yes. The flame-retardant ABS engineering plastic housing offers excellent insulation and corrosion resistance, allowing the switch to perform reliably in both industrial settings and everyday DIY electronics environments.
