LCD Keypad Shield LCD1602 Blue Screen Module for Arduino

LCD Keypad Shield LCD1602 Module — Blue Screen Display

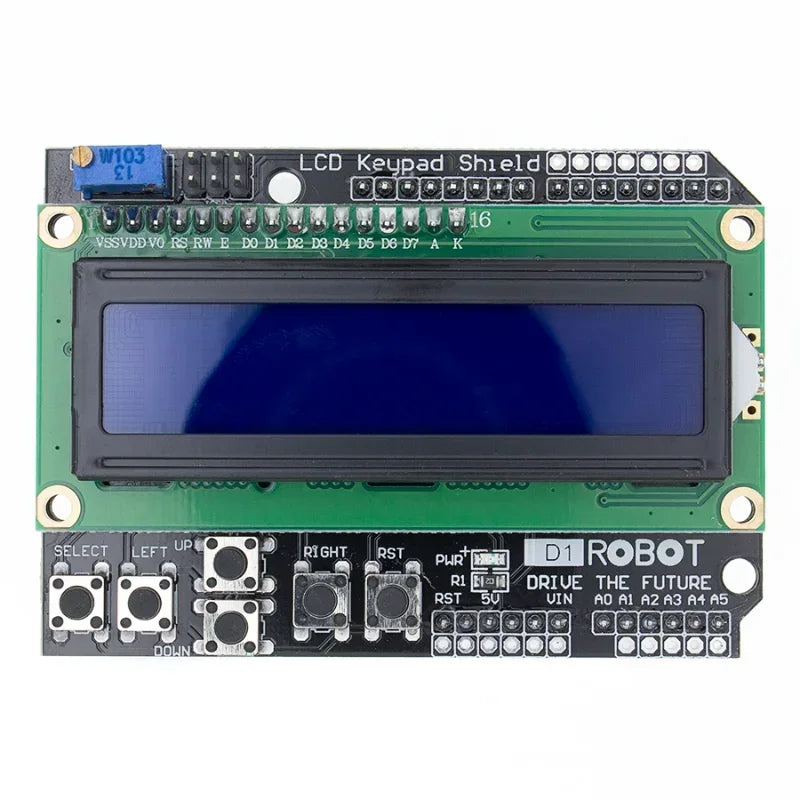

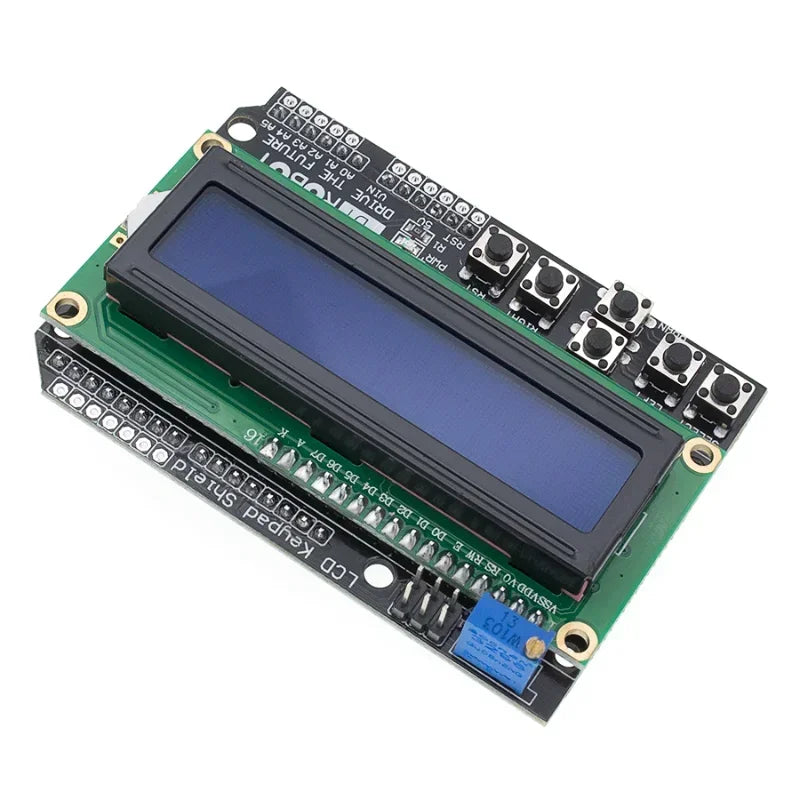

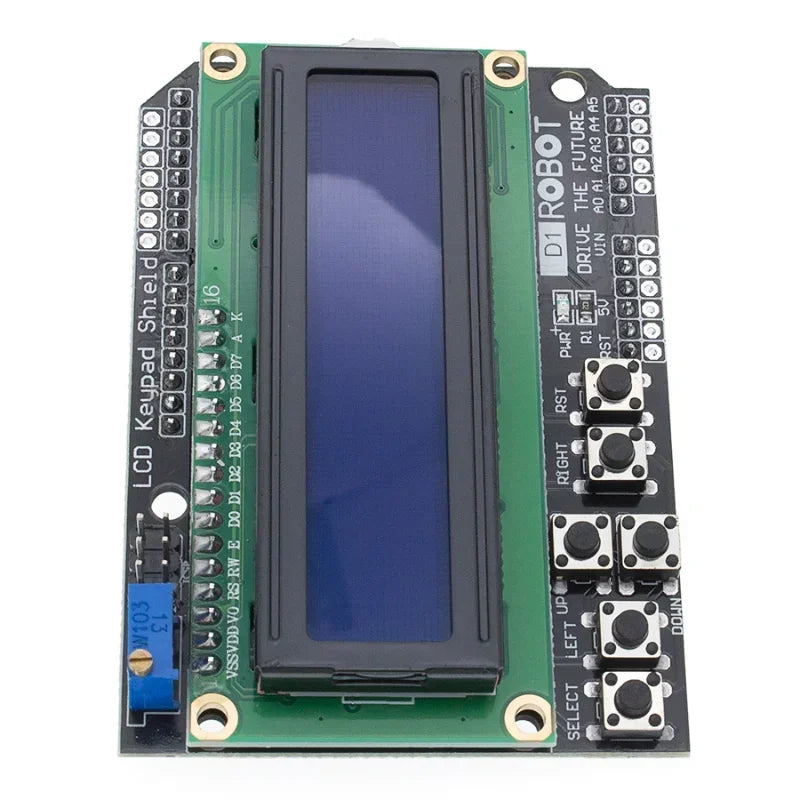

Upgrade your electronics projects with the LCD Keypad Shield LCD1602 Module. Featuring a crisp blue backlit 16×2 character display, this shield is designed to plug directly onto compatible Arduino development boards, giving you an instant, readable interface without complex wiring. Whether you're a hobbyist, student, or maker, this module is an excellent starting point for displaying sensor data, menus, or custom text in your DIY builds.

Key Features

• 16×2 Blue Backlit LCD: Crisp, easy-to-read characters on a vivid blue background — ideal for low-light environments and prototyping stations.
• Integrated Keypad: Uses just one analog port to handle five function keys (Select, Left, Right, Up, Down) plus one Reset key — conserving precious IO pins for the rest of your project.
• Expanded IO Access: All unused IO ports are broken out and available for standby expansion, so your circuit has room to grow without added complexity.
• Plug-and-Play Design: Stacks directly on top of compatible boards via standard headers — no soldering required for basic setup.
• Versatile Compatibility: Works with a wide range of Arduino-compatible platforms and IDE libraries for rapid prototyping.
• Adjustable Contrast: On-board potentiometer lets you fine-tune display contrast for optimal readability in any lighting condition.

Specifications

• Display Type: LCD1602 (16 columns × 2 rows)
• Backlight Color: Blue
• Keys: 5 directional/function keys + 1 reset key
• Analog Pins Used: 1 (A0 for keypad)
• Interface: Parallel (4-bit mode)
• Compatible With: Arduino Uno, Mega, and similar development boards

Perfect For

• DIY electronics and Arduino learning projects
• Sensor data readout displays
• Custom menu navigation interfaces
• Home automation prototype panels
• STEM education and classroom demonstrations

Learn More

For guidance on working safely with electronic components and prototyping tools, visit the U.S. Consumer Product Safety Commission (CPSC) for consumer electronics safety standards.

Frequently Asked Questions

Q: What is the LCD Keypad Shield LCD1602 Module and what does it do?

A: The LCD Keypad Shield LCD1602 Module is an Arduino-compatible display shield featuring a 16×2 blue backlit LCD screen and a built-in keypad. It uses a single analog input pin to read five directional/function keys plus a reset key, making it an efficient and space-saving solution for adding a user interface to your electronics projects.

Q: Is this LCD Keypad Shield compatible with my Arduino board?

A: This shield is designed for compatibility with standard Arduino Uno, Mega, and many other Arduino-compatible development boards that use standard header pin spacing. It uses the parallel 4-bit communication mode and is supported by widely available Arduino libraries, making setup straightforward even for beginners.

Q: Do I need to solder anything to use the LCD Keypad Shield?

A: No soldering is required for basic operation. The shield stacks directly onto your compatible Arduino board via standard pin headers. You can begin programming and displaying text right away, with the on-board potentiometer available to adjust display contrast to your preference.

Q: What are the unused IO ports used for?

A: All IO ports not consumed by the LCD or keypad are broken out and made accessible as expansion pins. This means you can connect additional sensors, modules, or actuators to your project without running out of available pins, giving your build room to grow and evolve.
