ESP32-S3 Development Board Expansion Adapter – WiFi BT MCU

ESP32-S3 Development Board Expansion Adapter | WiFi & Bluetooth MCU Module

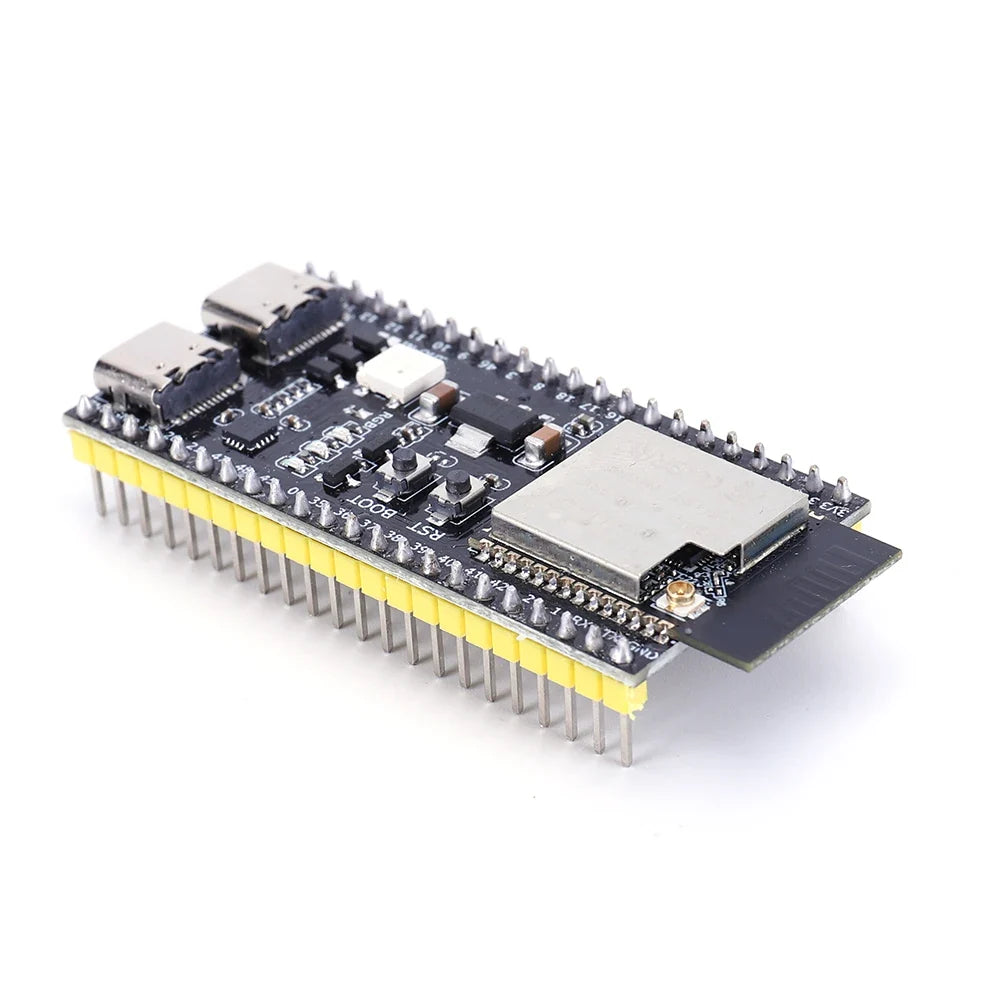

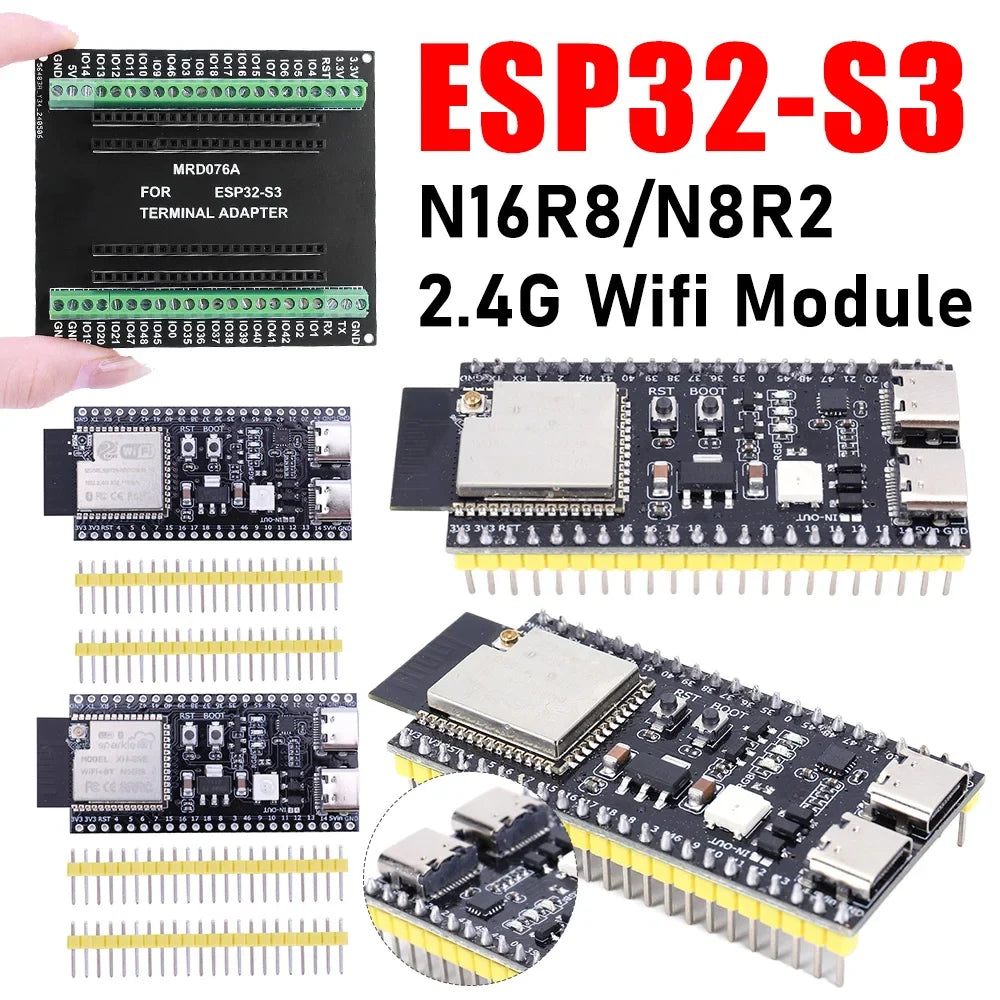

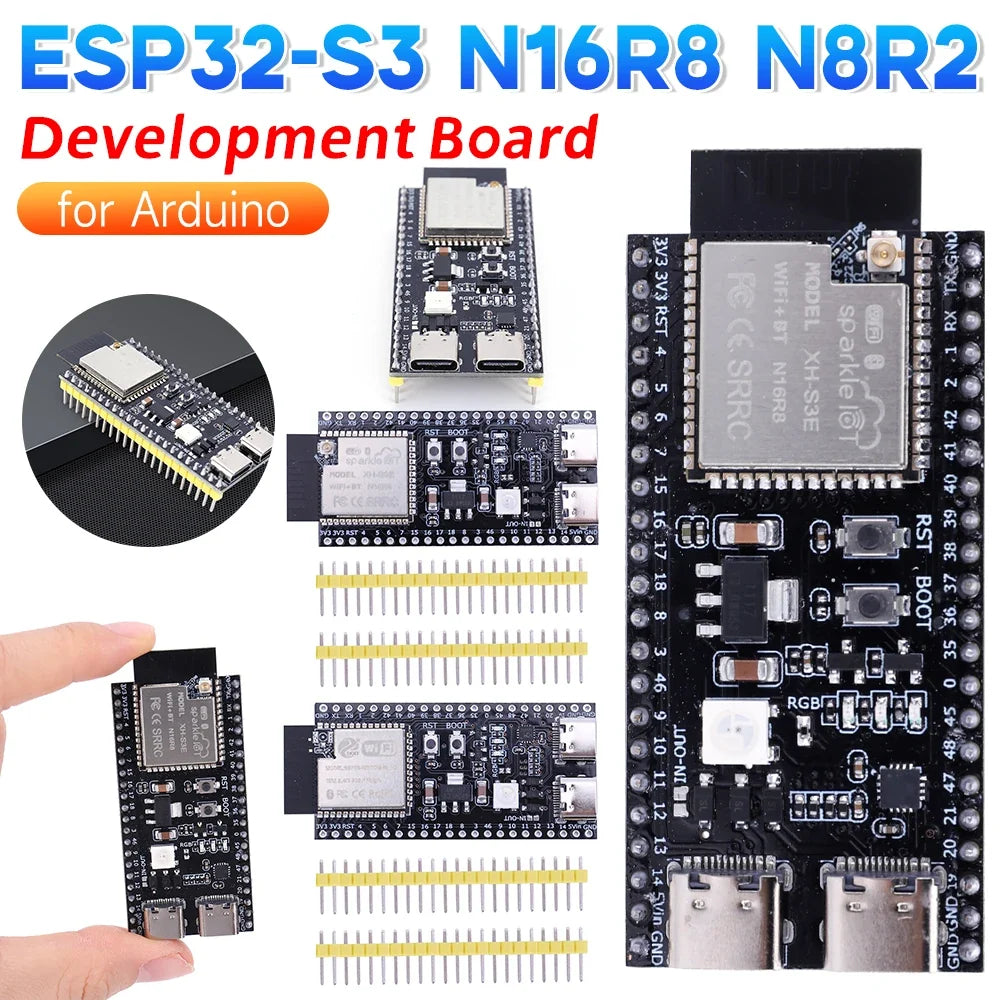

Take your embedded projects to the next level with the ESP32-S3 Development Board Expansion Adapter. Built around the powerful ESP32-S3WROOM-1 (N16R8) module, this compact adapter packs 2.4 GHz WiFi and Bluetooth connectivity into a slim 57 × 28 × 4 mm form factor — making it an ideal hub for IoT prototyping, smart-device development, and maker projects of every kind.

Key Features

• Dual Type-C Interfaces: Two USB Type-C ports for maximum flexibility. The COM port is ready to use straight out of the box for serial communication, while the USB port supports OTG mode or firmware downloading (hold the BOOT button at power-up to enter download mode).

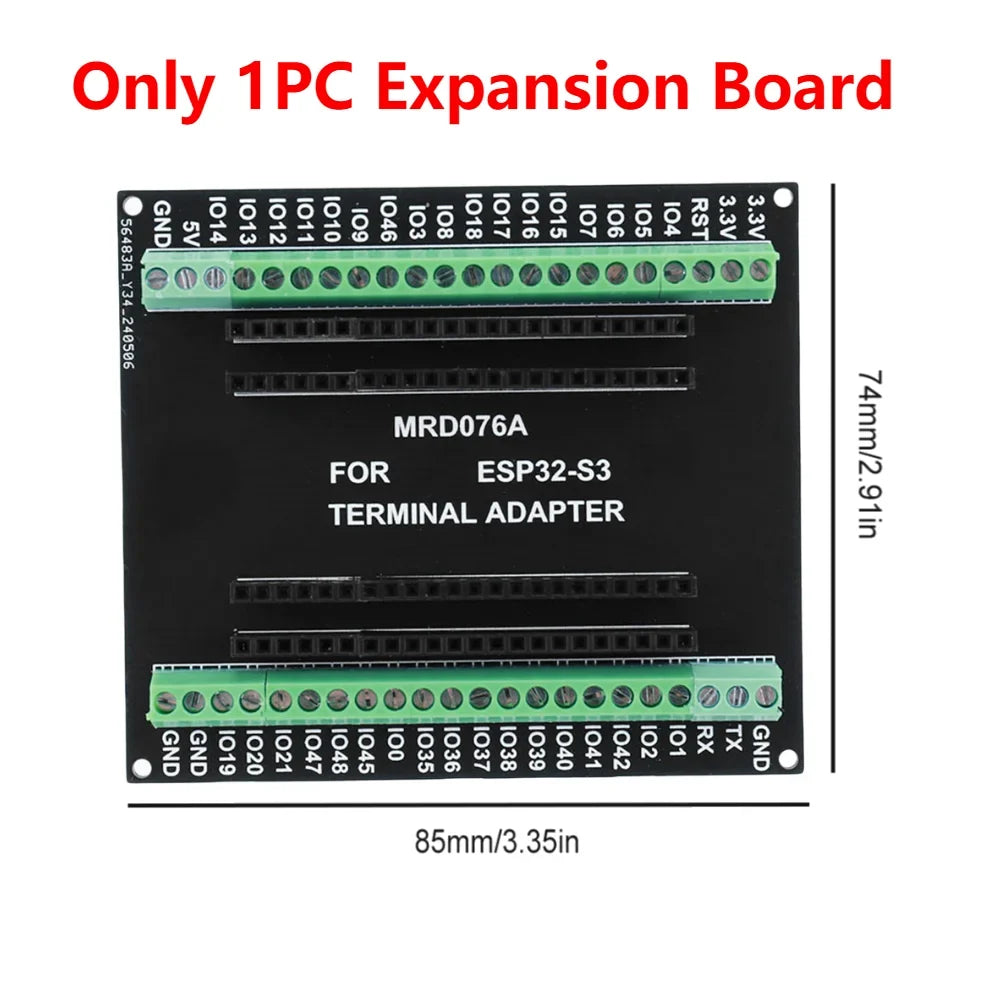

• 44-Pin Expansion Header: Full GPIO breakout gives you easy access to UART, SPI, I²C, ADC, DAC, PWM, and more — perfect for breadboarding or custom PCB integration.
• ESP32-S3WROOM-1 N16R8 Module: 16 MB Flash + 8 MB PSRAM for memory-intensive applications such as machine learning inference, image processing, and complex real-time tasks.
• 2.4 GHz WiFi (802.11 b/g/n) & Bluetooth 5.0 LE: Onboard wireless keeps your builds cable-free and cloud-connected.

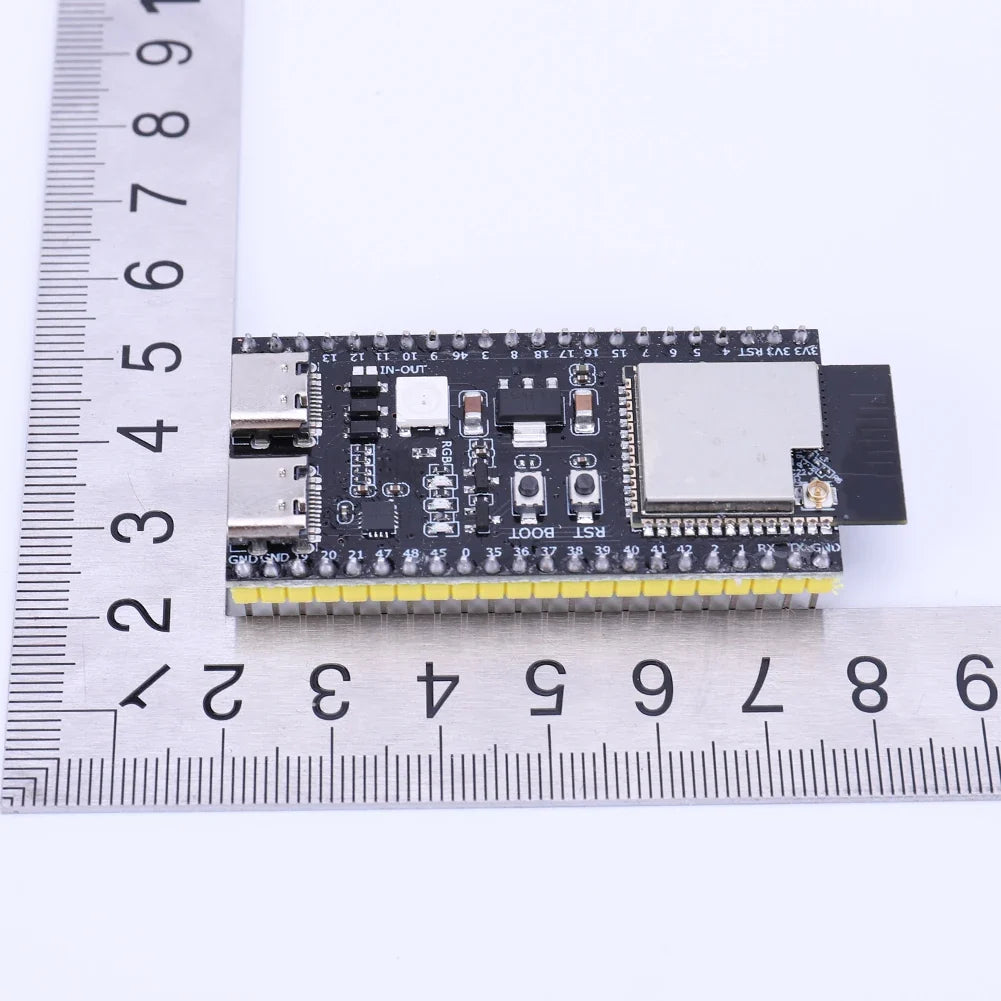

• Compact Mixed-Material Construction: Measures just 57 × 28 × 4 mm — fits neatly into enclosures, wearables, and space-constrained designs.
• Available in 4 Color Options: Choose the finish that matches your build aesthetic.

Technical Specifications

Who Is This For?

Whether you're a student exploring embedded systems, a maker building a smart home device, or a professional engineer prototyping an IoT product, the ESP32-S3 Expansion Adapter bridges the gap between module and working project with zero hassle.

Learn More About IoT & Embedded Development Standards

For guidance on electromagnetic compatibility and wireless device standards, visit the NIST Communications Technology Laboratory.

Frequently Asked Questions

Q: What makes the ESP32-S3 Development Board Expansion Adapter different from a standard ESP32 breakout board?

A: Unlike a basic breakout, this expansion adapter features dual USB Type-C ports (COM for serial communication and USB for OTG/firmware download), a full 44-pin GPIO header, and is built around the high-spec ESP32-S3WROOM-1 N16R8 module with 16 MB Flash and 8 MB PSRAM — providing significantly more connectivity, memory, and versatility for advanced IoT and embedded projects.

Q: How do I enter firmware download mode on the ESP32-S3 Expansion Adapter?

A: Connect the USB Type-C port labelled USB to your computer. Hold the BOOT button on the board while applying power (or while pressing the RESET button). The board will enumerate as a serial download device, allowing you to flash firmware using tools such as esptool.py or the Arduino IDE.

Q: Is the ESP32-S3 Expansion Adapter compatible with Arduino IDE and MicroPython?

A: Yes. The ESP32-S3 is fully supported by the Arduino IDE (via the ESP32 board package from Espressif), MicroPython, and ESP-IDF, giving you the freedom to code in whichever environment you prefer.

Q: What are the dimensions and how compact is the board?

A: The board measures 57 × 28 × 4 mm, making it extremely compact and suitable for integration into enclosures, wearables, and space-constrained designs.
