Aluminum Heat Sink Radiator for Single-Phase Solid State Relay

Aluminum Heat Sink Radiator for Single-Phase Solid State Relays

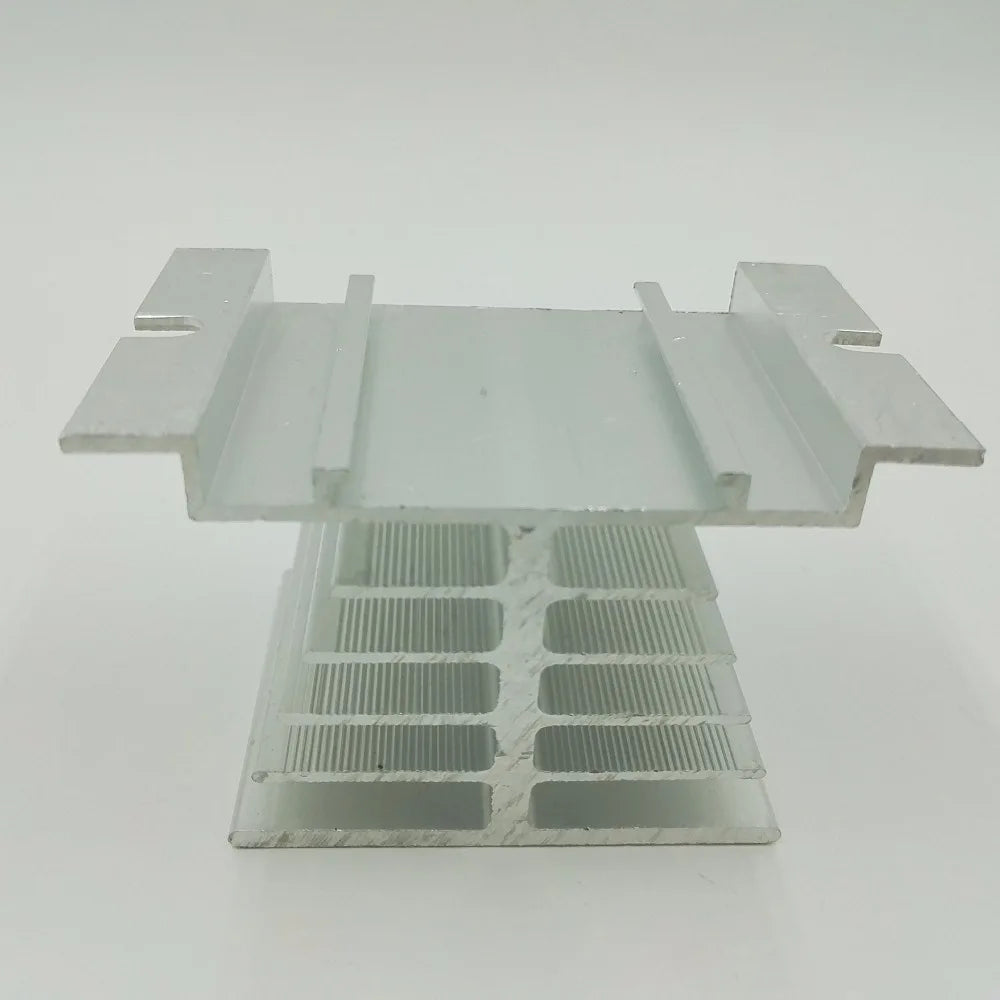

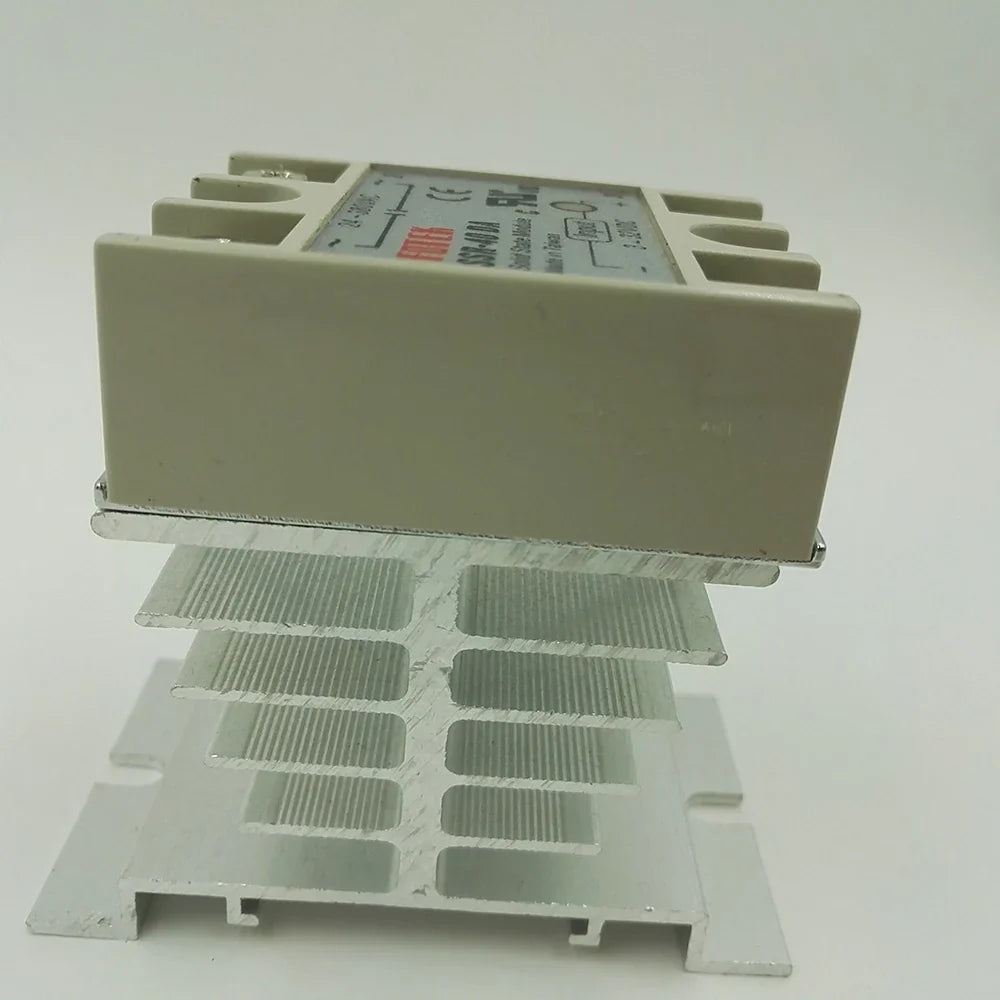

Keep your solid state relay (SSR) running efficiently with this single-phase aluminum heat sink radiator. Engineered from high-grade aluminum, this cooling base dissipates heat rapidly and helps maintain stable operating temperatures for SSRs (such as SSR-40DA, SSR-80DA, and similar models), extending component lifespan and improving overall system reliability.

Why You Need a Quality Heat Sink for Your SSR

Solid state relays generate significant heat during operation. Without proper thermal management, excess heat can degrade performance or shorten the life of your relay. This aluminum radiator provides efficient heat dissipation through its finned design, drawing heat away from the SSR body and dispersing it into the surrounding air.

Key Features

• High-conductivity aluminum construction — lightweight yet highly effective at drawing and dispersing heat
• Compatible with single-phase SSRs — fits popular relay footprints including SSR-40DA and SSR-80DA series

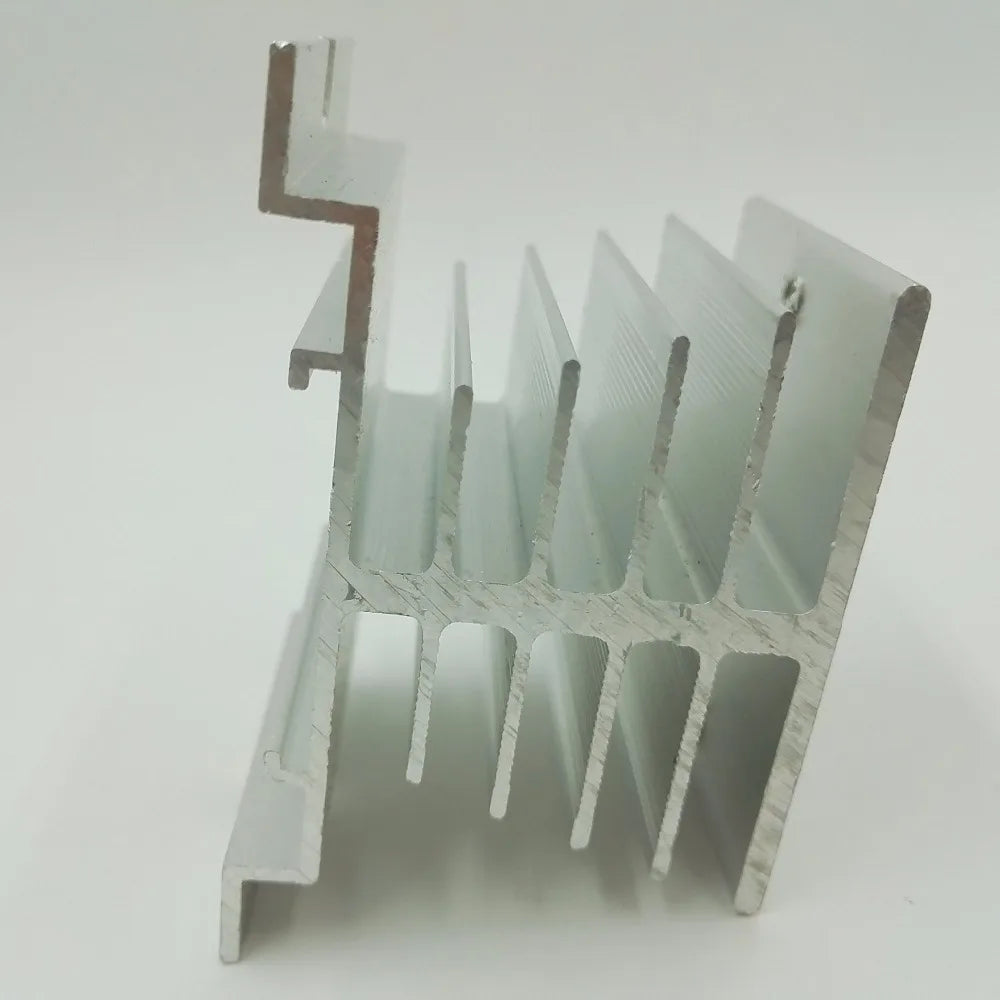

• Finned radiator design — maximizes surface area for fast, passive cooling without any moving parts
• Stable base mount — solid, flat base for secure panel or DIN rail mounting
• Compact & practical — easy to install in control panels, automation enclosures, and DIY electronics projects
• No noise, no maintenance — passive cooling means silent operation and zero upkeep

Ideal Applications

• Industrial automation and control panels
• DIY electronics and maker projects
• HVAC and temperature control systems
• Motor control and power management enclosures
• Home automation setups using single-phase SSRs

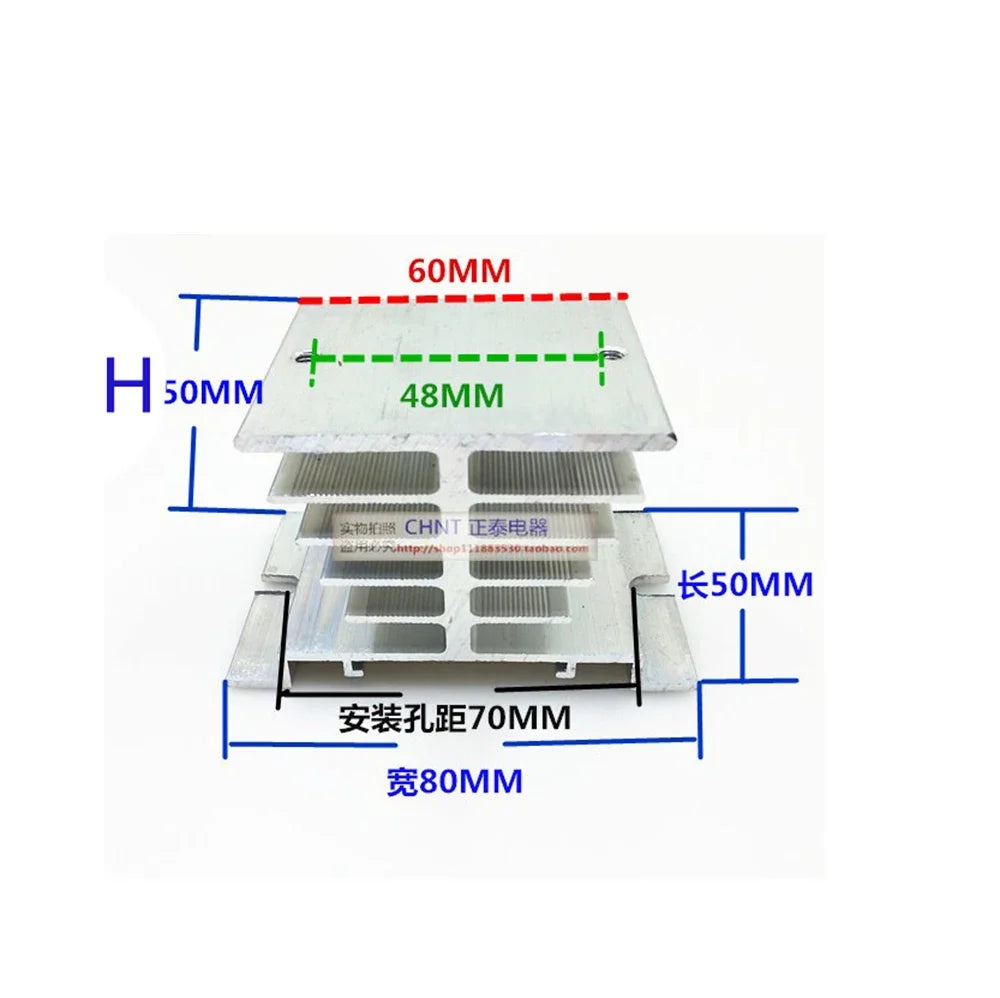

Product Specifications

• Material: Aluminum

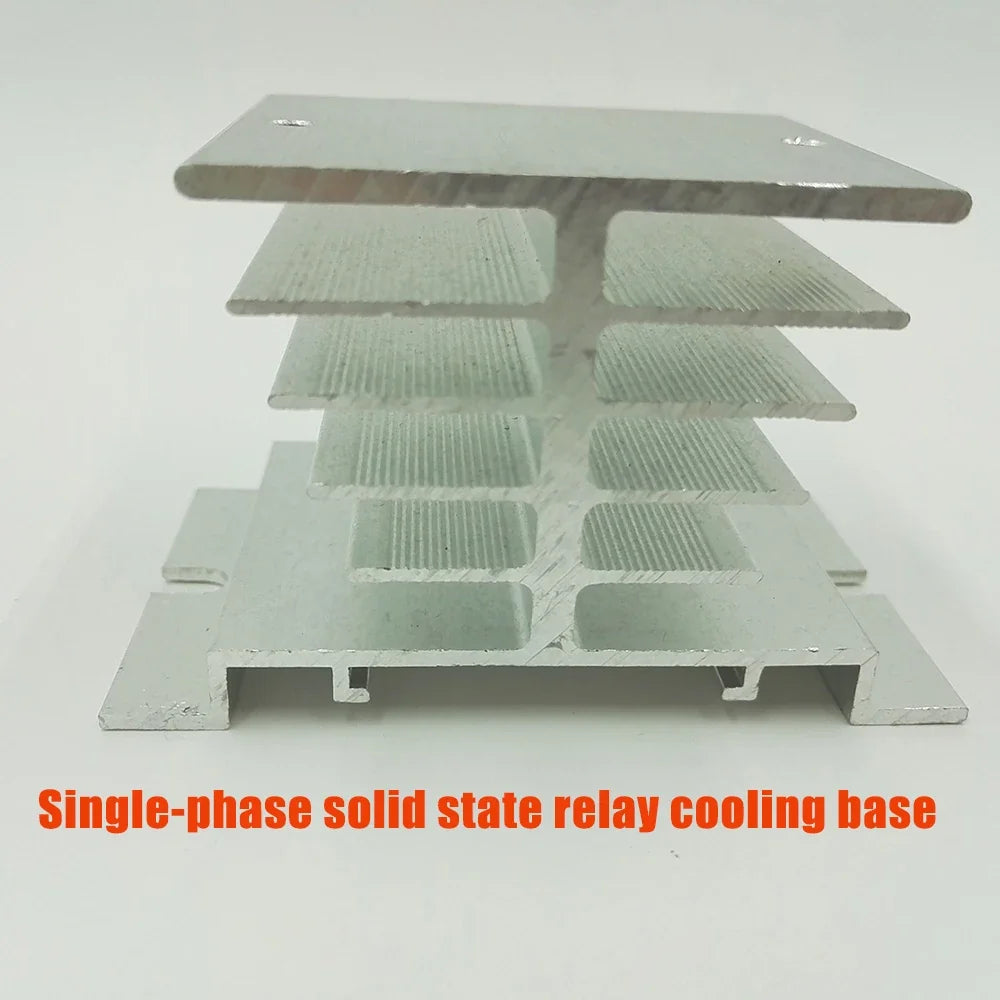

• Type: Single-phase SSR heat sink / radiator cooling base
• Compatible SSR models: SSR-40DA, SSR-80DA, and similar single-phase solid state relays

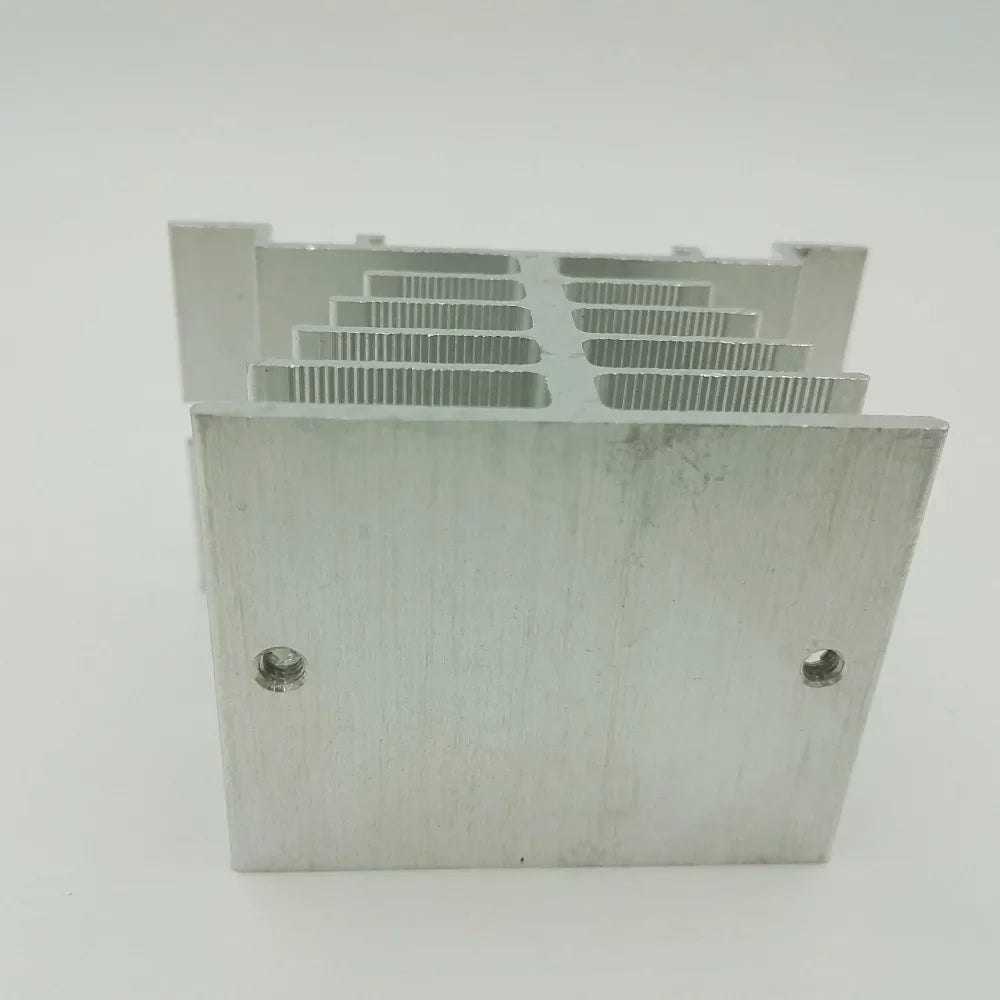

• Mounting: Flat base for panel or enclosure mounting

Safe Thermal Management

Proper heat dissipation is essential in any electrical installation. For guidance on safe electrical enclosure and thermal management practices, refer to OSHA's Electrical Safety Guidelines.

Frequently Asked Questions

Q: What solid state relay models is this aluminum heat sink compatible with?

A: This single-phase aluminum heat sink radiator is designed to fit common single-phase SSR footprints, including popular models such as SSR-40DA and SSR-80DA. Always verify the mounting hole pattern and base dimensions of your specific relay before installing.

Q: Does this heat sink require a fan for effective cooling?

A: No — this is a passive aluminum heat sink that relies on natural convection and its finned surface area to dissipate heat. For most standard single-phase SSR loads, passive cooling is sufficient. In high-load or enclosed environments, pairing it with a small fan can further improve thermal performance.

Q: How do I install the aluminum heat sink on my solid state relay?

A: Simply align the SSR with the mounting holes on the heat sink base and secure with the appropriate screws. For best thermal contact, applying a thin layer of thermal paste between the SSR and the heat sink surface is recommended before fastening.

Q: Is this heat sink suitable for use in industrial control panels?

A: Yes — this aluminum SSR heat sink radiator is well-suited for industrial automation panels, home automation systems, HVAC controls, and other single-phase switching applications where reliable thermal management is important.
