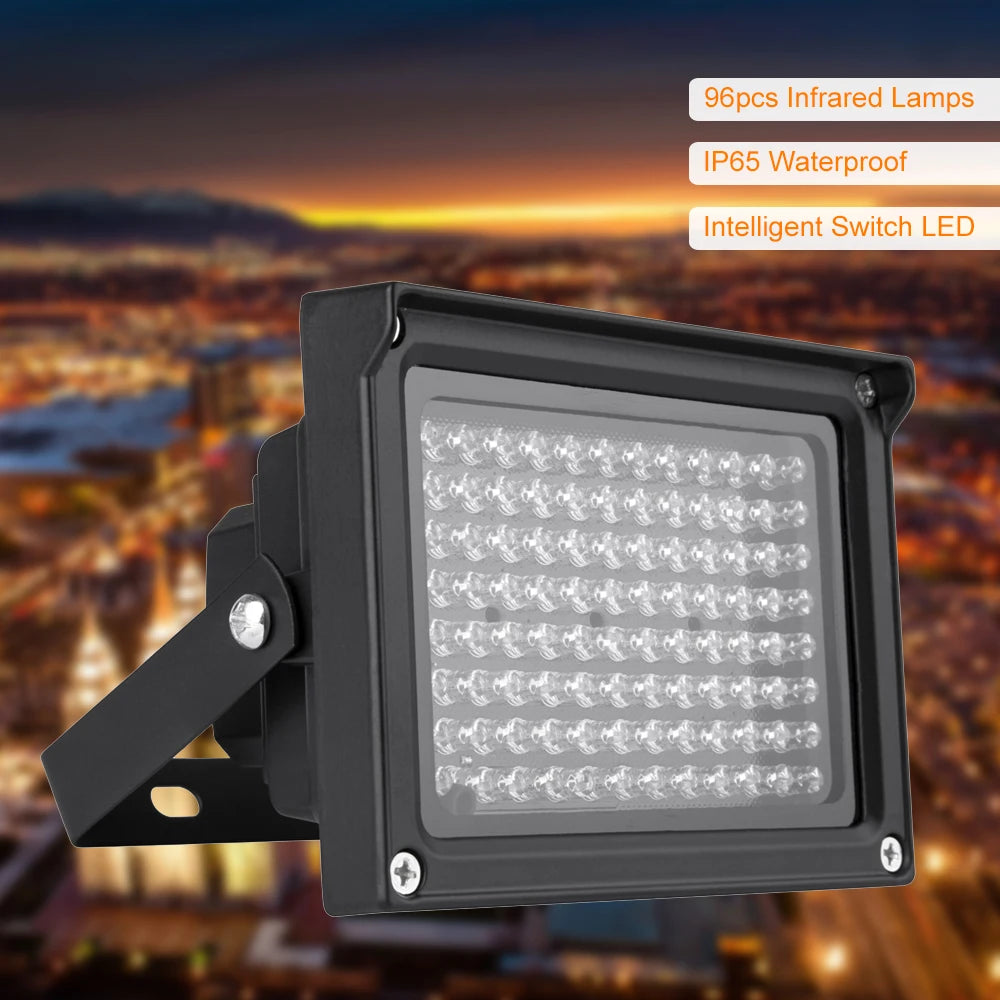

96 LED IR Illuminator IP65 Waterproof Night Vision CCTV Light

96 LED IR Illuminator – IP65 Waterproof Infrared Night Vision Light for CCTV Security Cameras

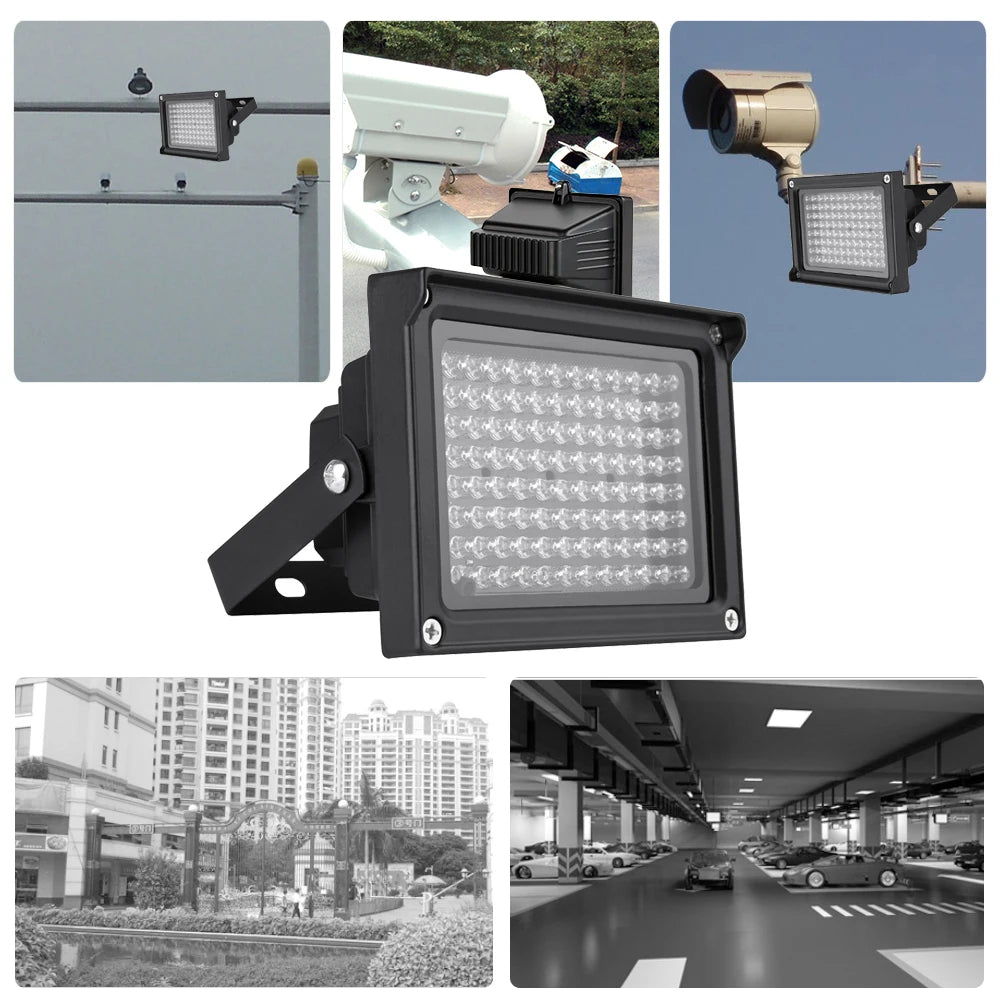

Upgrade your security setup with this powerful 96 LED Infrared Illuminator. Designed for outdoor and indoor CCTV cameras, it delivers strong 850nm infrared light across a viewing distance of 10–60 metres — all automatically, day or night. Built with a durable aluminium housing and IP65-rated waterproof tempered glass panel, it stands up to rain, dust, and temperature extremes from -20°C to 50°C.

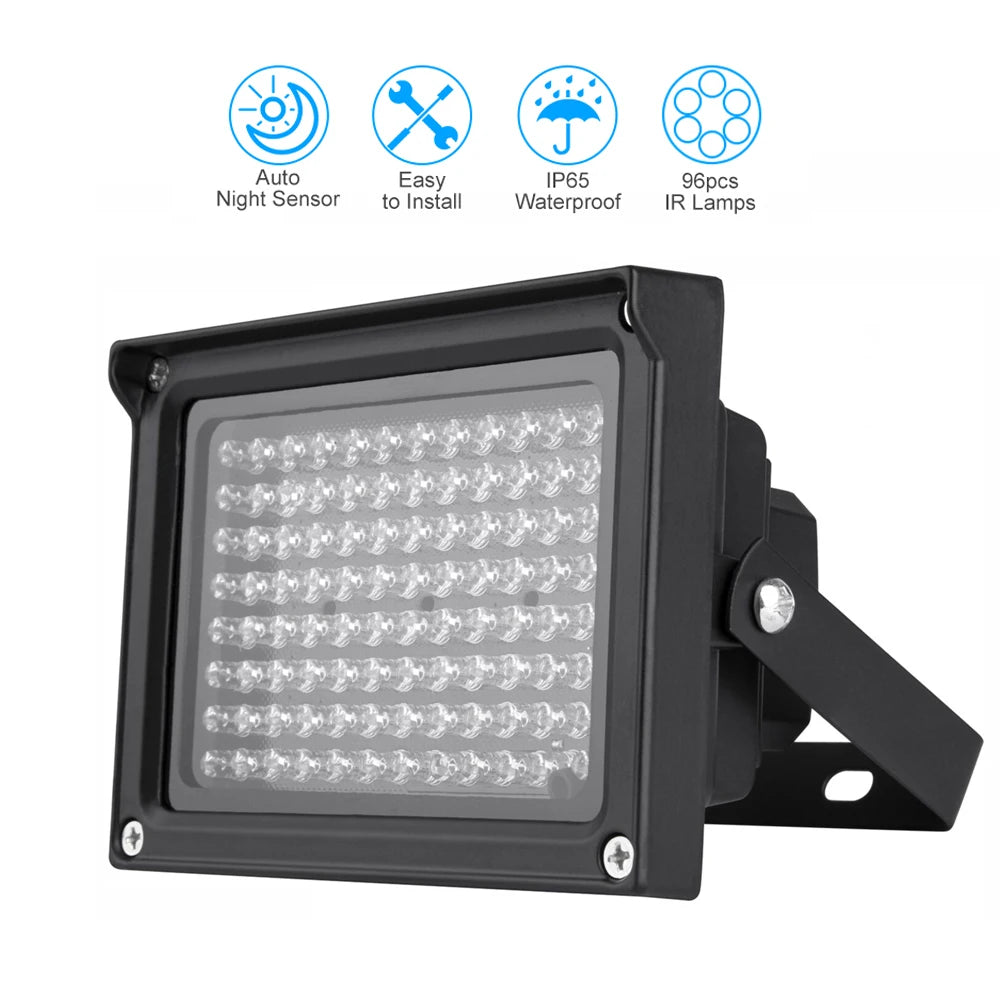

Key Features

• 96 High-Output IR LEDs at 850nm wavelength for effective night vision illumination up to 60m
• Auto Day/Night Sensor – automatically switches IR LEDs on at dusk and off at dawn
• IP65 Waterproof Rating with tempered glass panel – suitable for both indoor and outdoor use
• Aluminium Cast Housing for excellent heat dissipation and long-term durability
• 12W Low Power Consumption on DC 12V supply (5.5×2.1mm connector)
• Compact & Easy to Install – dimensions approx. 12.5 × 9 × 10 cm, weight approx. 430 g
• Operating temperature range: -20°C to 50°C
• Made in Mainland China

Specifications

What's in the Box

• 1 × 96 LED IR Illuminator
• 1 × User Manual (English)

Related Products You May Like

• 792 LEDs L7 Large Red Light Therapy LED Panel – 660nm 850nm Infrared Light
• 2.3m Flexible Drain Cleaning Brush – Multi-Use Pipe Tool

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: What camera types is this 96 LED IR illuminator compatible with?

A: This infrared illuminator is compatible with most standard CCTV and IP security cameras that require external IR lighting. It works alongside cameras with or without built-in IR LEDs, extending their night vision range up to 60 metres in low-light or zero-light environments.

Q: Does the IR illuminator include a power supply?

A: No, a DC 12V power supply (1A minimum, with a 5.5×2.1mm connector) is required but not included in the package. Please ensure you have a compatible adapter before use.

Q: Can this illuminator be used outdoors in wet or cold conditions?

A: Yes. The unit carries an IP65 waterproof rating and a tempered glass front panel, making it suitable for outdoor installation in rain and dust. It operates reliably across a wide temperature range of -20°C to 50°C.

Q: How does the automatic day/night switching work?

A: The built-in photosensitive sensor continuously monitors ambient light levels. When light drops below a set threshold (at dusk), the IR LEDs switch on automatically. When daylight returns (at dawn), they switch off — no manual intervention needed.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
