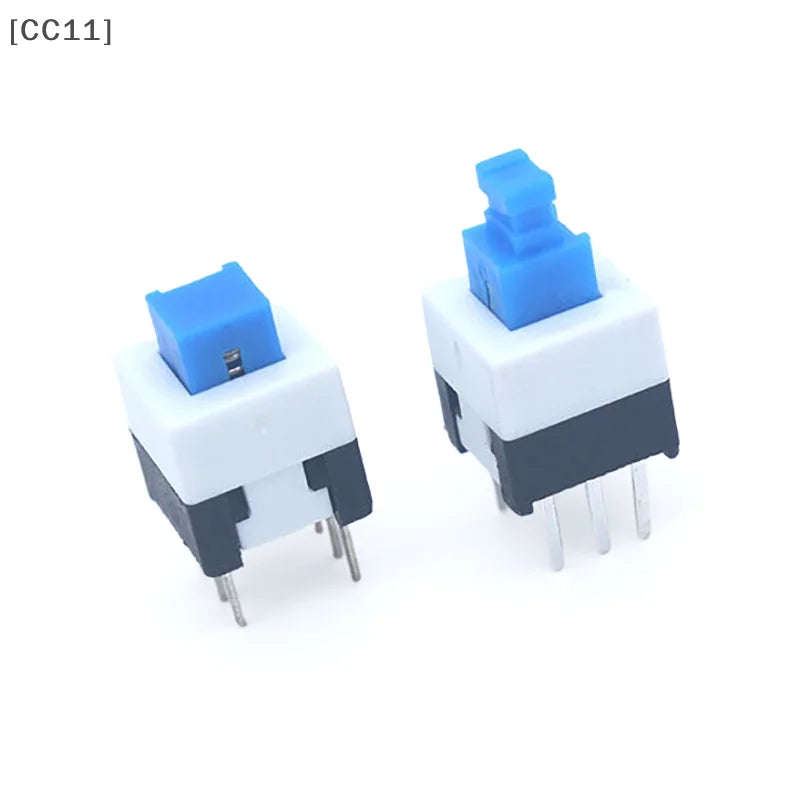

6-Pin DPDT Mini Self-Locking Push Button Switch 7x7x12mm 10pc

6-Pin DPDT Mini Push Button Self-Locking Switch — 7×7×12mm, 10-Piece Set

Upgrade your electronics projects with this compact, reliable DPDT (Double Pole Double Throw) mini push button self-locking switch. Measuring just 7×7×12mm, these square micro switches are engineered for precision control in a wide range of DIY electronics, circuit boards, multimeters, and craft builds. Each pack includes 10 pieces, giving you plenty for prototyping, repairs, or production runs.

Key Features

• DPDT Configuration: 6-pin double pole double throw design allows versatile circuit switching — ideal for toggling between two circuits or reversing polarity.
• Self-Locking Mechanism: One press to engage, one press to release — no need to hold the button down, saving effort and ensuring stable, consistent operation.
• Compact 7×7×12mm Form Factor: Flat-top square body fits neatly onto PCBs and panels with minimal footprint, perfect for space-constrained builds.
• High Temperature Resistance: Constructed from durable plastic with excellent thermal stability, these switches perform reliably across varying temperature environments and resist the effects of hot-air exposure during soldering or operation.
• Long Service Life: Built for repeated use, maintaining consistent performance cycle after cycle.
• 2 Color Options: Choose from available color variants to suit your project's aesthetic or wiring identification needs.
• Broad Compatibility: Suitable for multimeters, DIY electronics kits, craft controllers, hobby robotics, and more.

Specifications

• Type: DPDT Self-Locking Push Button Switch
• Pin Count: 6 Pins
• Dimensions: 7 × 7 × 12mm
• Material: High-temperature-resistant Plastic
• Switch Style: Flat-top, Square Body
• Quantity: 10 pieces per lot

What's in the Box?

• 10 × 7×7×12mm 6-Pin DPDT Mini Push Button Self-Locking Switches

For more guidance on electronic component safety and best practices when working with switches and circuit boards, visit the U.S. Consumer Product Safety Commission (CPSC).

Frequently Asked Questions

Q: What does DPDT mean and how does this 6-pin push button switch work?

A: DPDT stands for Double Pole Double Throw. This 6-pin mini push button switch can control two separate circuits simultaneously, making it ideal for toggling power, reversing motor direction, or switching between two signal paths. The self-locking feature means the switch stays in its pressed state until pressed again — no need to hold it.

Q: What projects are these 7×7×12mm DPDT mini push button switches suitable for?

A: These compact self-locking switches are well-suited for multimeters, DIY electronics and hobbyist circuit boards, robotics, LED control panels, craft electronics projects, and any application requiring a reliable, small-footprint momentary-latch switch.

Q: Are these switches easy to solder onto a PCB?

A: Yes. The 6-pin through-hole design makes them straightforward to solder onto standard PCBs. The high-temperature-resistant plastic housing also withstands typical soldering temperatures without deforming or losing function.
