49TYJ 220V 4W Synchronous Motor – Shaking Head Fan Replacement

49TYJ 220V 4W Claw Pole Permanent Magnet Synchronous Motor

Keep your electric fan running smoothly with the 49TYJ 220V 4W Claw Pole Permanent Magnet Flat Port Synchronous Motor. Designed as a reliable replacement motor for oscillating (shaking head) fans, this compact synchronous motor delivers consistent, quiet operation at 220V AC. Its flat port design ensures straightforward installation, making it an excellent choice for DIY repairs and appliance maintenance.

Constructed from durable metal components, this motor is built to handle continuous daily use. Whether you're restoring a household fan, maintaining HVAC equipment, or working on a custom motor-driven project, the 49TYJ synchronous motor offers dependable performance you can count on.

Key Features

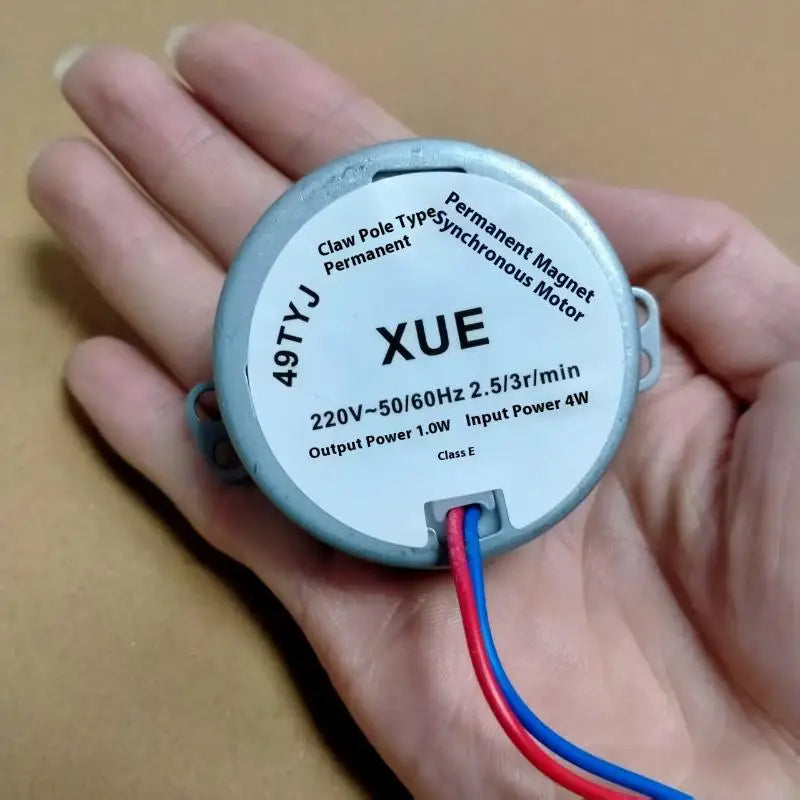

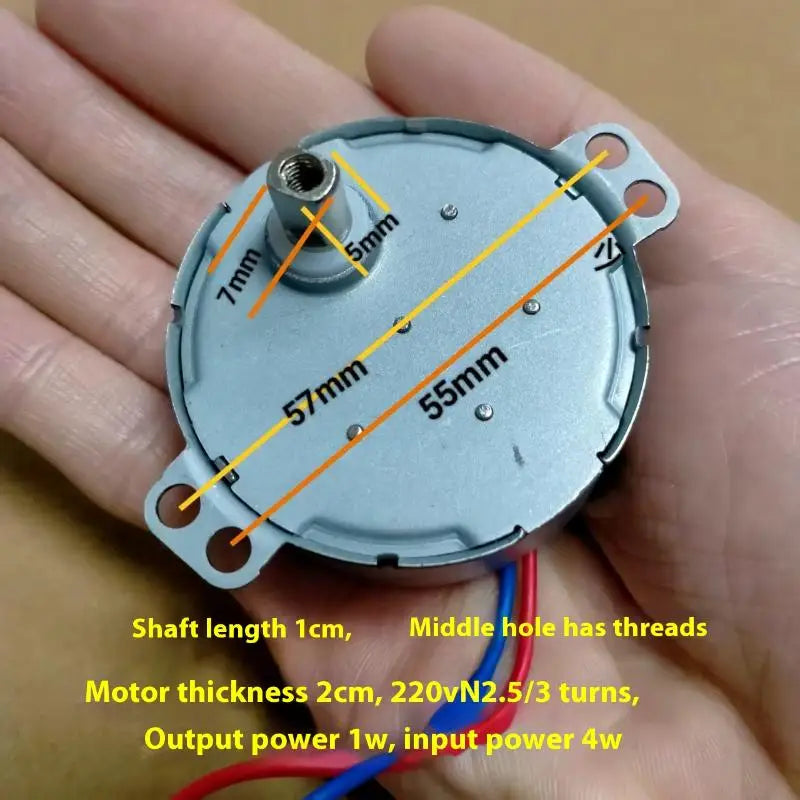

• Model: 49TYJ
• Voltage: 220V AC
• Power: 4W
• Motor Type: Claw Pole Permanent Magnet Synchronous Motor
• Port Type: Flat Port for easy installation
• Application: Oscillating / shaking head fans, electric fan motor replacement, small appliances
• Material: Metal construction for durability
• Design: Compact form factor fits standard fan motor housings

Why Choose the 49TYJ Synchronous Motor?

• ✔ Reliable Replacement Part — Purpose-built for shaking head fan motor applications
• ✔ Permanent Magnet Design — Delivers steady torque and consistent RPM output
• ✔ Flat Port Interface — Simplifies wiring and mechanical connection during installation
• ✔ Durable Metal Build — Withstands the demands of long-term continuous operation
• ✔ Energy Efficient — Low 4W draw keeps operating costs minimal

Applications

The 49TYJ motor is widely used in:

• Oscillating desk and pedestal fans (shaking head mechanism)
• Electric fan motor repairs and replacements
• Small home appliance motors
• DIY motor-driven automation projects

Installation Notes

Please verify your existing fan motor's voltage (220V AC), wattage (4W), and connector port type before ordering to ensure compatibility. Refer to your appliance's service manual or the motor's original label for specifications. For general electrical safety guidance, visit CPSC Electrical Safety Resources.

Note: Color and finish may vary slightly from product images due to monitor calibration and lighting conditions. Please refer to the actual product received for exact specifications.

Frequently Asked Questions

Q: What type of fan is the 49TYJ 220V 4W synchronous motor compatible with?

A: The 49TYJ synchronous motor is designed primarily as a replacement motor for oscillating (shaking head) electric fans that operate on 220V AC. It is also suitable for other small motor-driven appliances and DIY projects requiring a claw pole permanent magnet synchronous motor. Always verify voltage, wattage, and port type compatibility with your specific appliance before installation.

Q: What is a claw pole permanent magnet synchronous motor?

A: A claw pole permanent magnet synchronous motor uses a permanent magnet rotor and a claw-shaped stator structure to generate efficient rotational torque in sync with the AC supply frequency. This design produces consistent, low-noise rotation — making it ideal for fan oscillation mechanisms and other applications requiring smooth, steady motor output.

Q: Is the 49TYJ motor easy to install as a fan motor replacement?

A: Yes. The flat port design of the 49TYJ motor simplifies the wiring connection and mechanical fit into standard fan motor housings. Most users with basic DIY experience can install it as a direct replacement. Always disconnect the appliance from power before beginning any installation or repair work.

Q: What material is the 49TYJ motor constructed from?

A: The 49TYJ synchronous motor is constructed from metal components, providing a robust and durable build that withstands the stresses of continuous daily operation in fan and appliance applications.
