20V 18650 Li-Ion BMS Battery Protection Circuit Board | Smart Balancing

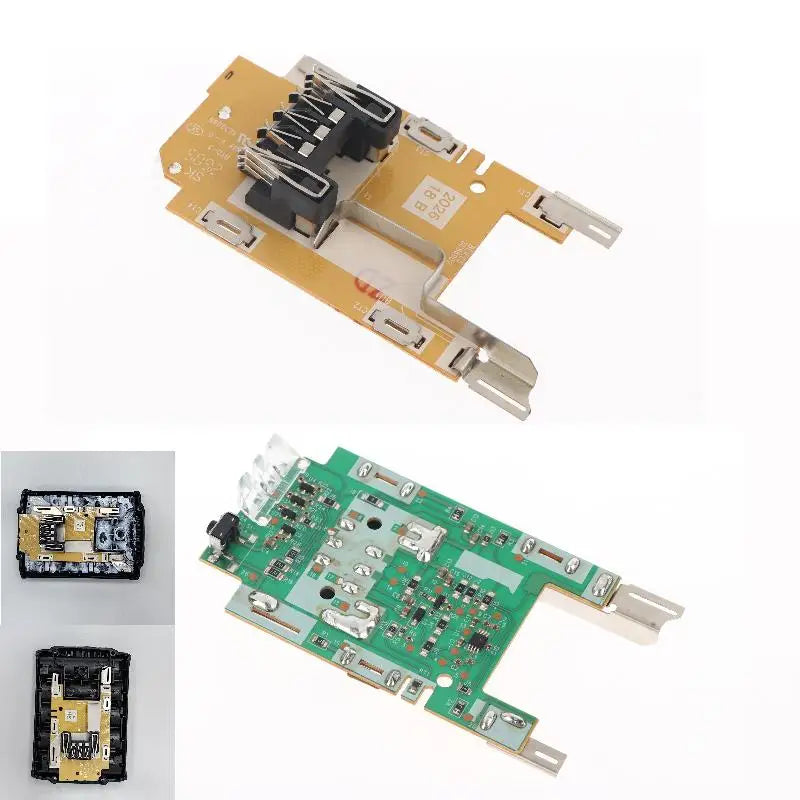

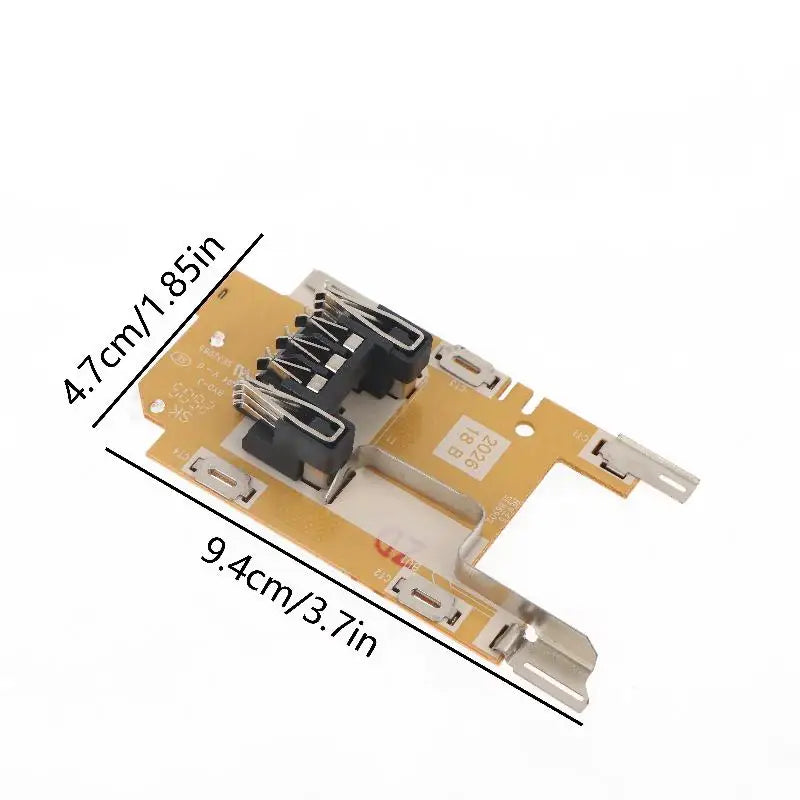

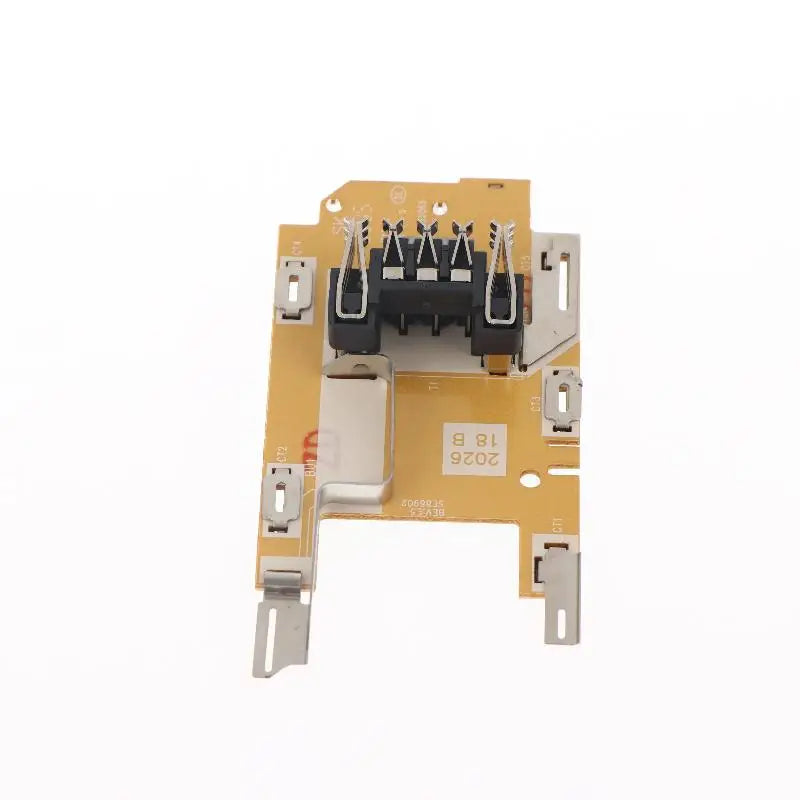

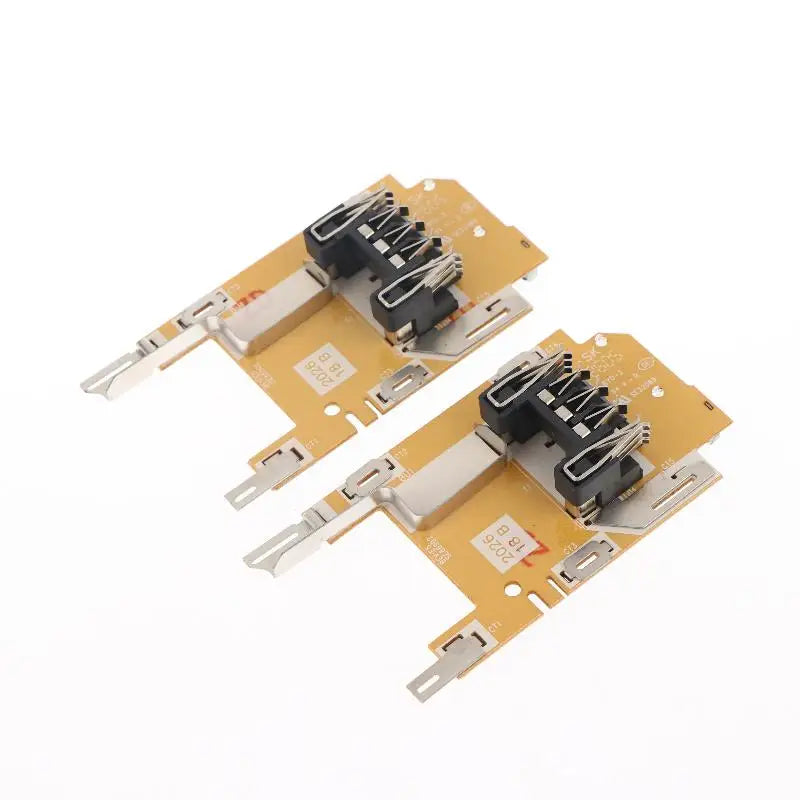

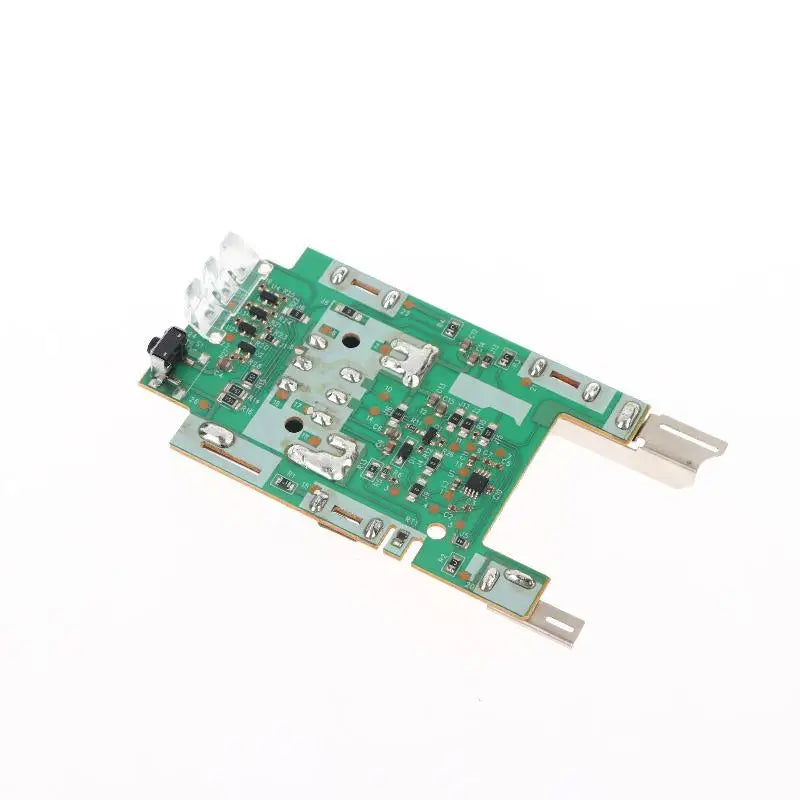

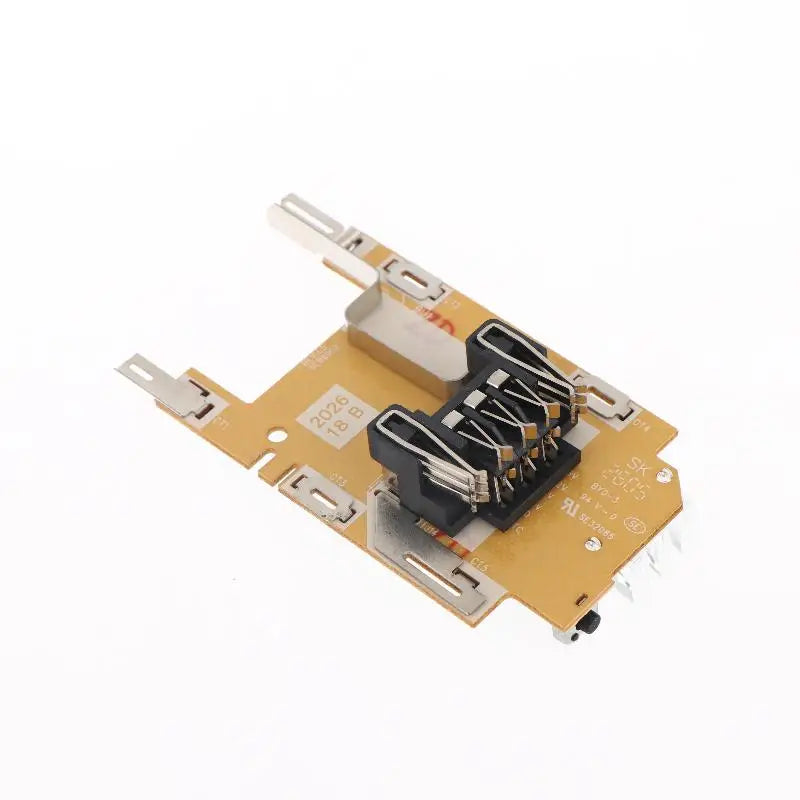

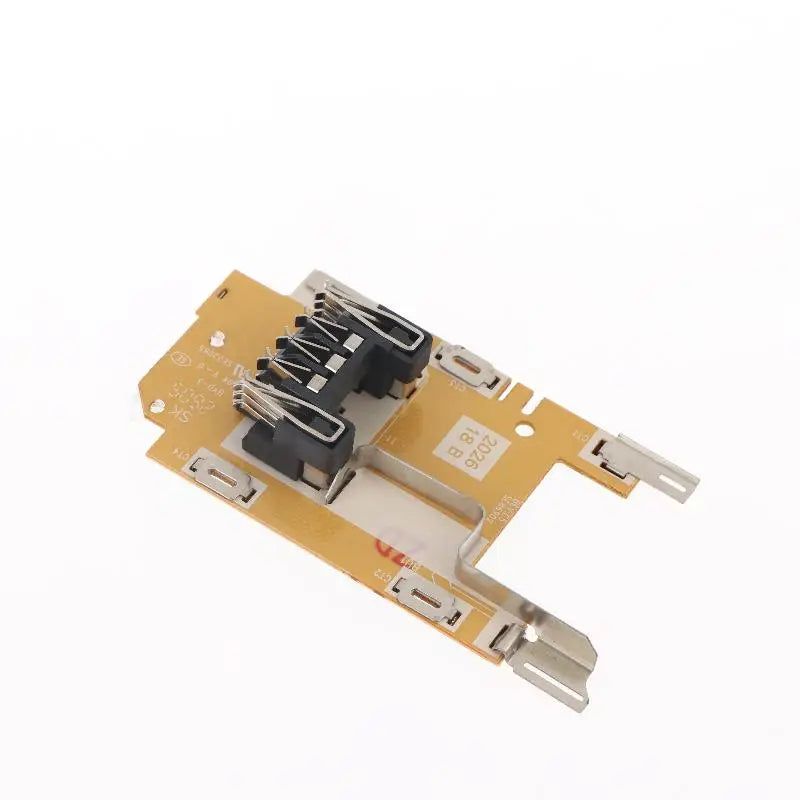

20V 18650 Li-Ion BMS Battery Protection Circuit Board with Smart Balancing

Take full control of your DIY battery packs with this 20V 18650 Lithium-Ion BMS Battery Protection Circuit Board. Engineered for makers, hobbyists, and electronics enthusiasts, this smart balancing board provides comprehensive charge and discharge protection — keeping your 18650 cell packs running safely and efficiently for longer. Available in 2 color options to suit your build.

Key Features

• Smart Cell Balancing: Actively balances individual 18650 cells during charging, maximizing pack capacity and extending overall battery lifespan.
• Overcharge Protection: Automatically cuts off charging when cells reach their maximum safe voltage, preventing damage from over-voltage conditions.
• Over-Discharge Protection: Disconnects the load when cell voltage drops below the safe threshold, preserving cell health and longevity.
• Short-Circuit Protection: Instantly cuts power in the event of a short circuit, protecting both the board and connected devices.
• Overtemperature Safeguard: Monitors thermal conditions to guard against overheating during intensive charge or discharge cycles.
• High-Quality PCB Construction: Built on a durable printed circuit board for reliable performance in daily DIY, solar storage, and backup power applications.
• 700mAh Set Type Compatibility: Designed to work with standard 18650 lithium-ion cells in multi-cell series configurations.
• Compact & Easy to Integrate: Slim form factor fits neatly into custom battery enclosures, DIY power tools, solar storage packs, and portable backup systems.

Specifications

• Voltage: 20V
• Compatible Cells: 18650 Lithium-Ion
• Set Type: 700mAh
• Board Material: PCB (Printed Circuit Board)
• Color Options: 2 available
• Protections: Overcharge, Over-discharge, Short Circuit, Overtemperature

Ideal For

• DIY solar energy storage systems
• Portable backup power packs
• Custom battery packs for power tools & electronics
• Robotics, RC vehicles, and maker projects
• E-bike and electric vehicle battery management

Why Choose This BMS Board?

A reliable Battery Management System (BMS) is essential for safe, long-lasting lithium-ion battery packs. This board's multi-layer protection and smart balancing ensure every cell in your pack works in harmony — reducing waste, maximizing output, and giving you peace of mind whether you're building a solar backup system or a custom DIY power tool battery.

For general guidance on lithium battery safety and best practices, refer to the U.S. Consumer Product Safety Commission – Lithium-Ion Battery Safety Information.

Frequently Asked Questions

Q: What does the 20V 18650 Li-Ion BMS Battery Protection Circuit Board do?

A: This BMS (Battery Management System) board monitors and manages a 20V 18650 lithium-ion battery pack. It provides smart cell balancing along with multiple layers of protection — including overcharge, over-discharge, short-circuit, and overtemperature safeguards — to keep your battery pack operating safely and efficiently.

Q: What is this BMS board made of?

A: The board is constructed on a high-quality PCB (Printed Circuit Board), ensuring durability and reliable electrical performance across DIY solar, backup, and custom battery pack applications.

Q: What projects is this BMS board compatible with?

A: This board is ideal for DIY solar energy storage, portable backup power systems, custom 18650 battery packs for power tools, robotics, RC vehicles, e-bikes, and a wide range of maker and electronics projects that use 18650 lithium-ion cells in a 20V series configuration.

Q: How many cells does this BMS board support?

A: This board is designed for use with 18650 lithium-ion cells configured in a series arrangement to achieve a 20V nominal output. The smart balancing feature ensures each cell in the pack charges and discharges evenly for optimal performance.

Q: Is this BMS board suitable for solar storage applications?

A: Yes. The overcharge and over-discharge protections make this board well-suited for DIY solar battery storage systems, where charge cycles can vary with weather conditions and usage patterns.
