2-Channel RS485 Isolation Repeater Hub 12–36V Anti-Interference

2-Channel RS485 Isolation Repeater Hub — 12–36V Anti-Interference Signal Booster

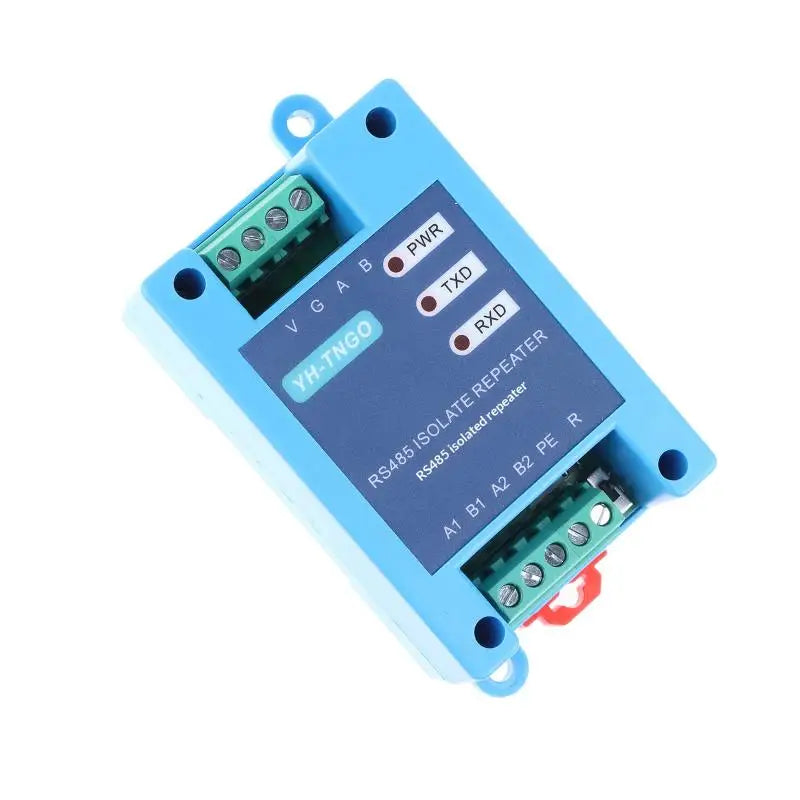

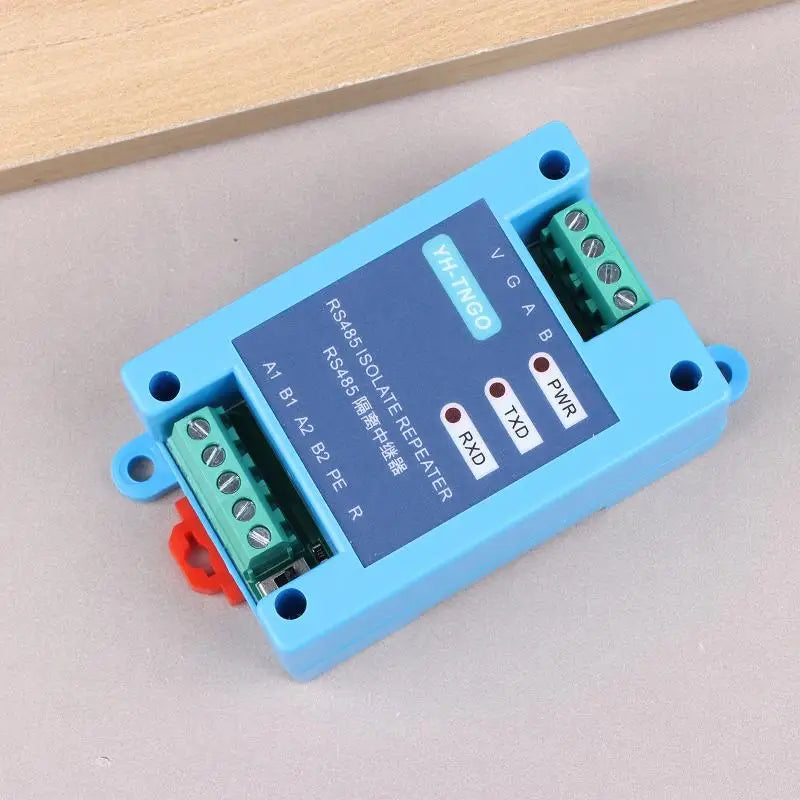

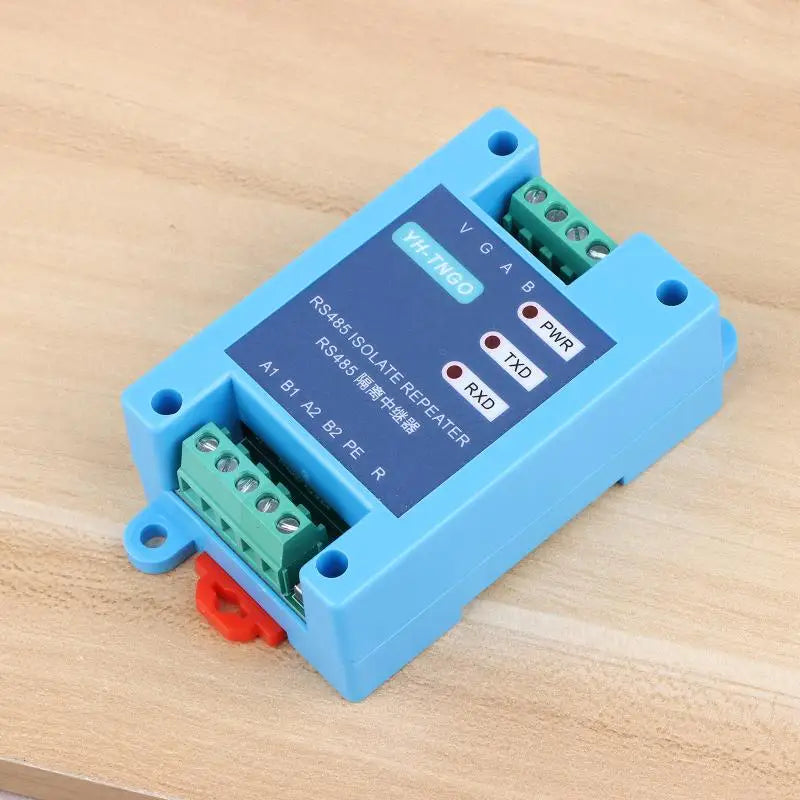

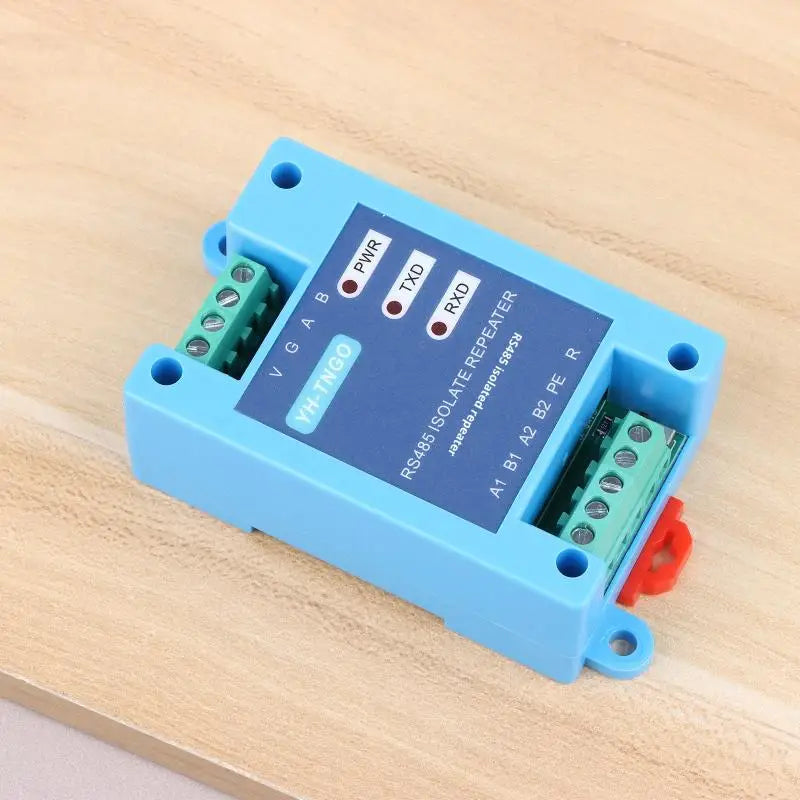

Extend and stabilize your RS485 data network with this compact 2-Channel RS485 Isolation Repeater Hub. Designed for industrial automation, warehouse communication, and building control systems, this module amplifies and isolates RS485 signals to ensure fast, accurate, long-distance data transmission — even in electrically noisy environments.

Key Features

• Dual-Channel Signal Amplification: Two independent RS485 channels boost weakened data signals, restoring transmission integrity over longer cable runs.
• Galvanic Isolation: Built-in optical isolation eliminates ground loops and suppresses electromagnetic interference (EMI), keeping your network stable and interference-free.
• Wide Input Voltage Range: Operates on 12V–36V DC, making it compatible with a broad range of industrial power supplies and vehicle systems.
• Anti-Interference Design: Robust shielding and signal conditioning protect against common-mode noise, voltage spikes, and transient surges found in industrial environments.

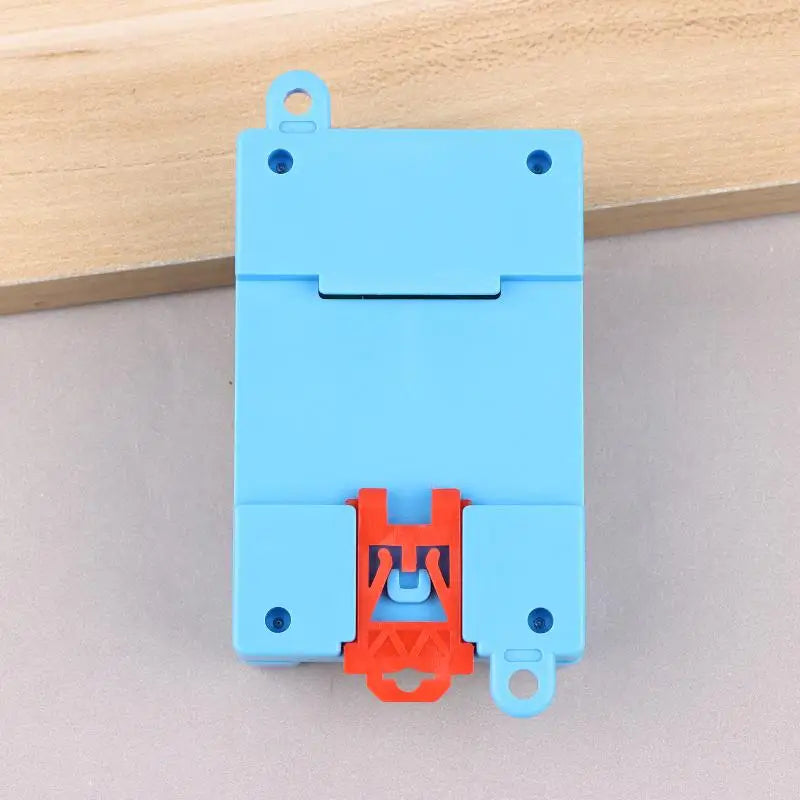

• Compact & Rail-Mountable: Measures just 9 × 5.2 × 3.2 cm (3.54" × 2.05" × 1.26") — easy to install in control cabinets, DIN-rail enclosures, or tight spaces.
• Plug-and-Play: No complex configuration required — connects directly to your existing RS485 bus for instant signal extension.
• Broad Application Compatibility: Suitable for PLC networks, SCADA systems, warehouse automation, building management, and more.

Specifications

• Channels: 2
• Protocol: RS485
• Input Voltage: 12V – 36V DC

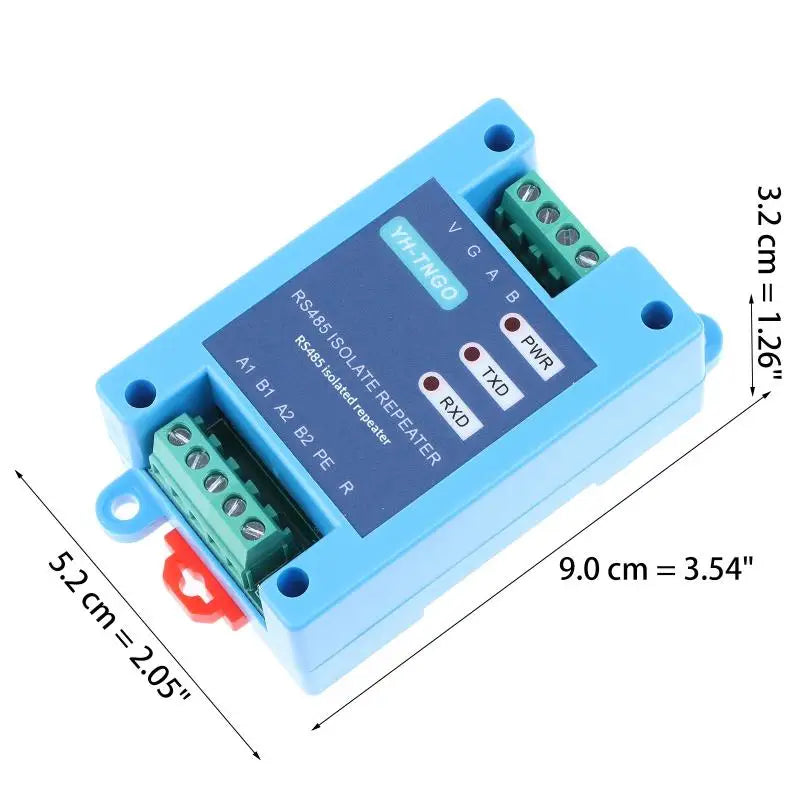

• Dimensions: 9 × 5.2 × 3.2 cm / 3.54" × 2.05" × 1.26"
• Isolation Type: Optical (galvanic)
• Application: Industrial automation, warehouse communication, building control

Why Use an RS485 Isolation Repeater?

Over long cable distances, RS485 signals degrade — data packets arrive corrupted or lost entirely. An isolation repeater regenerates the signal to full strength, effectively extending the maximum network distance and the number of devices on your bus. The isolation barrier also protects sensitive equipment from high-voltage transients and ground potential differences that are common in industrial facilities. For further reading on industrial data communication standards, visit the National Institute of Standards and Technology (NIST).

Who Is This For?

This RS485 repeater hub is ideal for engineers, system integrators, and technicians who need to:

• Extend RS485 bus length beyond the standard 1,200 m limit
• Connect more than 32 devices on a single RS485 segment
• Isolate sensitive controllers from noisy field devices
• Stabilize communication in high-EMI environments (motors, VFDs, welding equipment)

Frequently Asked Questions

Q: What does the 2-Channel RS485 Isolation Repeater Hub do?

A: This RS485 isolation repeater regenerates and amplifies RS485 data signals across two independent channels. It restores signal strength lost over long cable runs and provides galvanic optical isolation to block electromagnetic interference, ensuring accurate, long-distance data communication in industrial and automation networks.

Q: What voltage does the RS485 repeater hub require?

A: The hub operates on a wide DC input voltage range of 12V to 36V, making it compatible with standard industrial power supplies, vehicle electrical systems, and various control panel configurations.

Q: How far can RS485 signals travel with this repeater?

A: A standard RS485 network supports up to approximately 1,200 metres (about 4,000 feet). Each repeater segment effectively resets that distance limit, allowing you to chain multiple repeaters to cover very long cable runs across large facilities or campuses.

Q: Is this repeater hub compatible with PLC and SCADA systems?

A: Yes. The 2-Channel RS485 Isolation Repeater Hub is compatible with any RS485-based system, including PLCs, SCADA platforms, building management systems (BMS), warehouse automation controllers, and industrial sensor networks.
