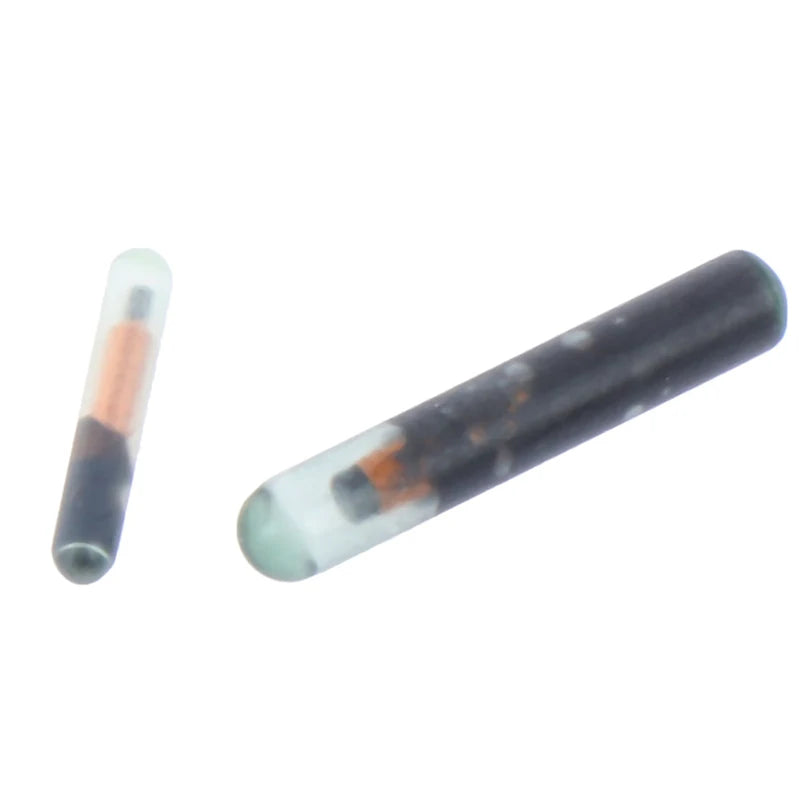

134.2KHz Implantable RFID Microchip Tag for Pet Identification
Keep your pets safe and permanently identified with this professional-grade implantable RFID microchip tag. Designed for dogs, cats, fish, horses, mice, and other small animals, this bio-glass encapsulated tag complies with the internationally recognized ISO 11784/5 FDX-B standard and is certified by the International Committee for Animal Recording (ICAR). Whether used by veterinarians, pet owners, or animal researchers, it offers reliable, battery-free lifetime identification.
Key Features
-
Dual Frequency Compatible: Operates at 134.2 KHz and 125 KHz for broad reader compatibility
-
ISO 11784/5 FDX-B Compliant: Meets international animal identification standards
-
EM4305 Chip: 512-bit memory with >20-year data retention
-
Bio-Glass Housing: Biocompatible glass capsule — safe for implantation
-

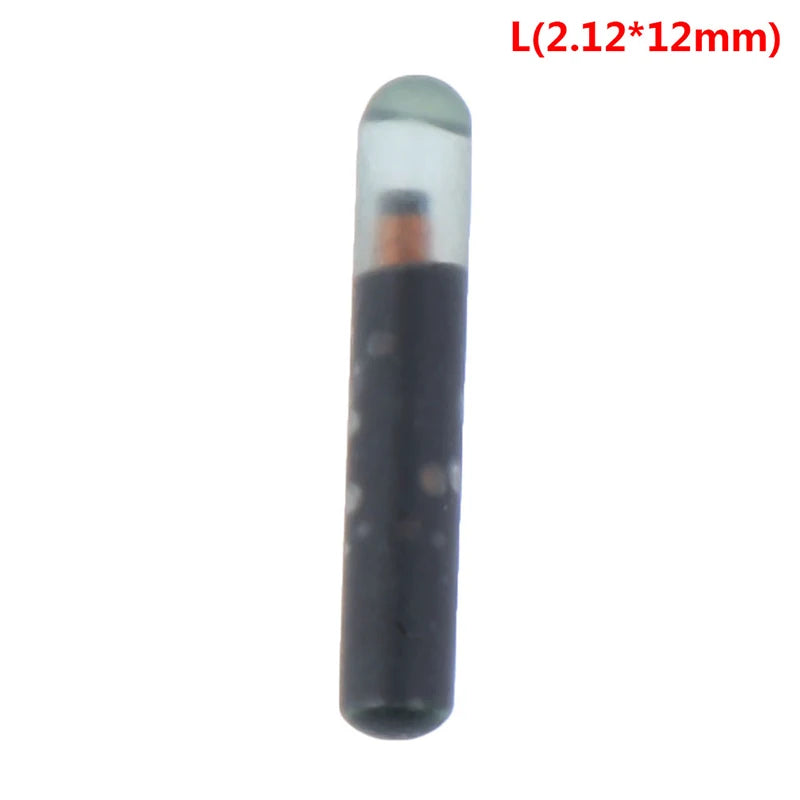

Two Size Options: 2.12 × 12mm (standard) or 1.25 × 7mm (mini for small animals & fish)
-
Exceptional Durability: IP68 rated (1m, 24h); resistant to saltwater, alcohol, HCL, fuel, and ammonia
-
Ultra-Lightweight: Only 0.1g — virtually undetectable once implanted
-
Battery-Free: Passive RFID — no power source needed, works for the lifetime of the animal
Full Technical Specifications
| Housing Material |
BIO Glass |
| Protocol |
ISO 11784/5 FDX-B |
| Frequency |
134.2 KHz / 125 KHz |
| Chip Type |
EM4305 |
| Memory |
512 bits |
| Sizes Available |
2.12 × 12mm / 1.25 × 7mm |
| Operating Temperature |
-25°C to +85°C |
| Storage Temperature |
-40°C to +90°C |
| Heat Resistance |
+120°C (100 hrs), +140°C (10 hrs) |
| Chemical Resistance |
IP68, saltwater, alcohol, HCL, fuel, ammonia |
| Mechanical Resistance |
Vibration IEC 68.2.6, Shock IEC 68.2.29 |
| Memory Retention |
>20 years |
| Weight |
0.1g |
| Battery |
None (passive) |
| Certification |
ICAR International |
Applications
- Dogs, cats, horses — standard companion animal identification
- Fish, mice, and other small animals — mini size ideal for tiny species
- Wildlife tracking and research programs
- Veterinary clinics and animal shelters
- Livestock and aquaculture management
Made in Mainland China.
You May Also Like
Learn more: U.S. Fish and Wildlife Service
Frequently Asked Questions
Q: What animals is this RFID microchip tag compatible with?
A: This 134.2KHz RFID microchip tag is designed for a wide range of animals including dogs, cats, horses, fish, mice, and other small animals. The 1.25 × 7mm mini size is especially suited for fish and tiny animals, while the 2.12 × 12mm standard size is ideal for dogs, cats, and larger pets.
Q: Is this RFID tag compatible with standard pet microchip scanners?
A: Yes. The tag complies with ISO 11784/5 FDX-B — the globally recognized standard for animal identification — and operates at 134.2 KHz and 125 KHz, making it compatible with the vast majority of universal RFID readers and pet microchip scanners used by veterinarians and shelters worldwide.
Q: Does this microchip tag require a battery?
A: No. This is a passive RFID tag — it requires no battery whatsoever. It draws power wirelessly from the scanner during reading, offering a truly maintenance-free, lifetime identification solution for your pet.
Q: How long will the data stored on the chip last?
A: The EM4305 chip offers a memory retention of over 20 years, ensuring your pet's unique identification number remains stored and readable throughout their lifetime.
Q: Is the bio-glass housing safe for implantation?
A: The tag is encased in biocompatible (BIO) glass, specifically designed for safe animal implantation. It is also IP68-rated and chemically resistant to saltwater, alcohol, fuel, and other substances, making it extremely durable once implanted. Implantation should always be performed by a licensed veterinarian.
